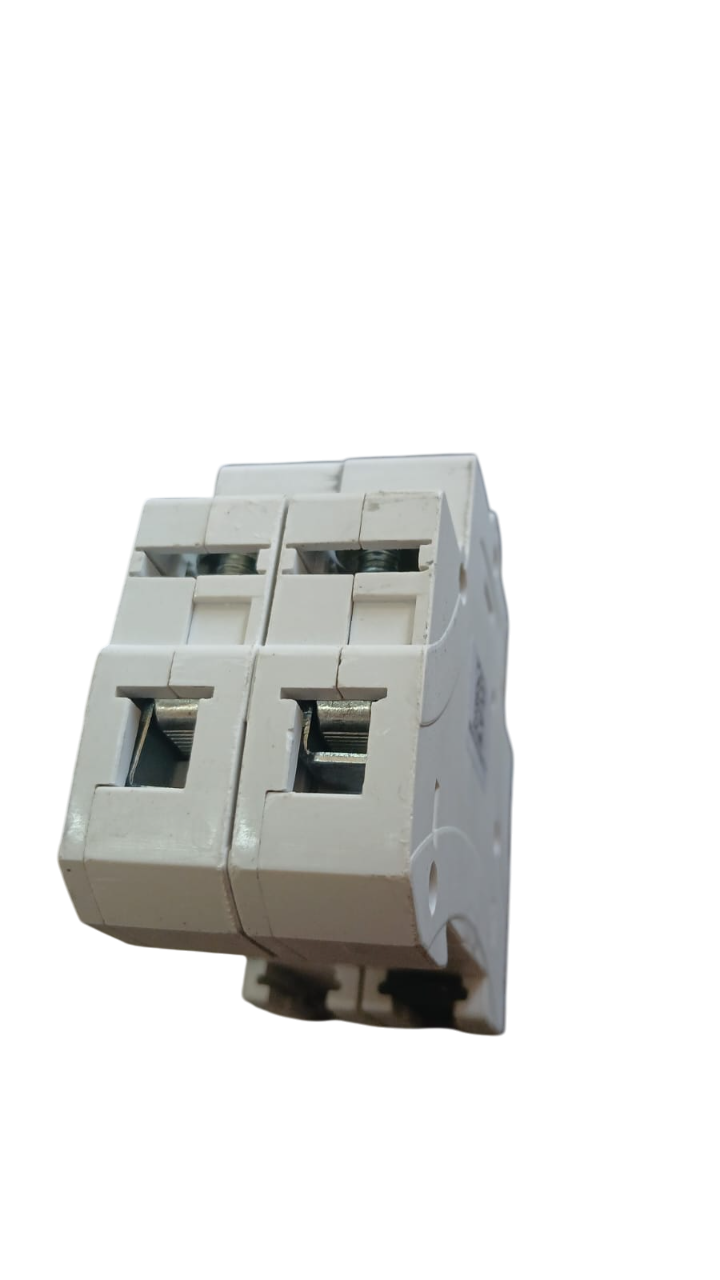

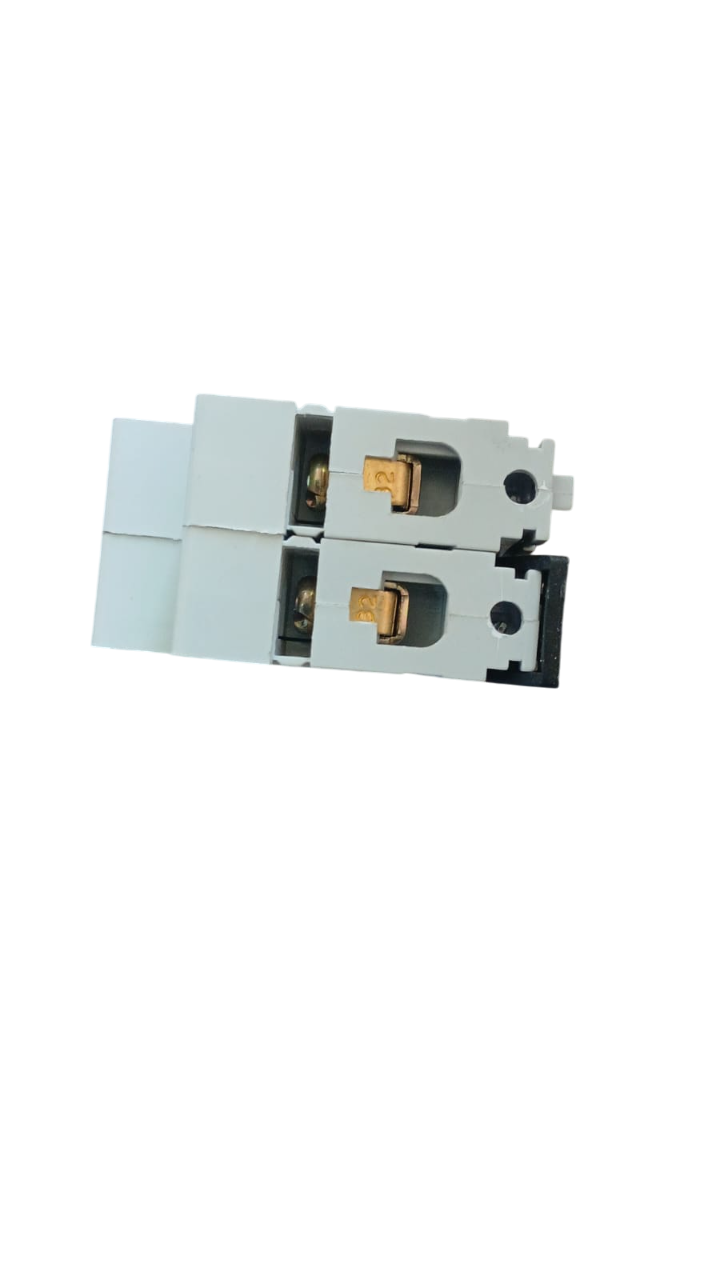

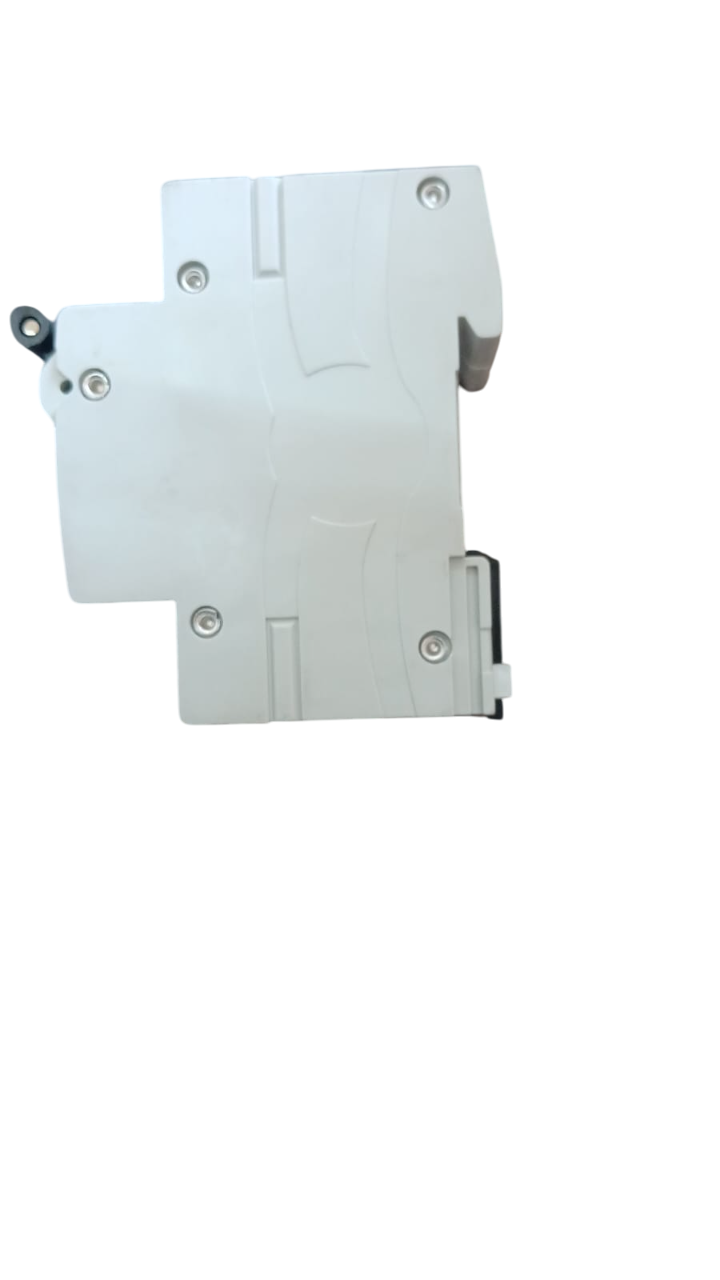

32A DP SCHNEIDER DC MCB

Description

• C indicates the trip characteristic of the MCB, which is C-curve. This means the MCB will trip when the current exceeds 5 to 10 times its rated current. For a 32A MCB, this means it will trip when the current reaches between 160A and 320A. This is suitable for circuits with moderate inrush currents, such as motors and other equipment with high startup currents.
• 32A is the current rating of the MCB. It is designed to handle 32 amperes of continuous current under normal conditions.

DP (Double Pole):

• Double Pole (DP) means the MCB can disconnect both the positive and negative conductors simultaneously in a DC circuit. This ensures that the circuit is fully isolated in the event of an overload or fault, protecting the system from potential damage or hazards.
• In a DC circuit, isolation of both conductors is essential because DC does not alternate in polarity like AC, and the MCB needs to disconnect both the positive and negative sides for complete safety.

DC (Direct Current):

• The DC designation indicates that this MCB is specifically designed for use in Direct Current systems, where the flow of electric charge is constant and unidirectional. DC circuits are used in many modern electrical applications, including solar power systems, battery-powered devices, and other systems where DC power is used.
• The MCB is engineered to handle the specific characteristics of DC circuits, as they do not have the zero-crossing point that AC circuits do, making it more challenging to break the current flow.

4. MCB (Miniature Circuit Breaker):

• An MCB is a circuit protection device that automatically disconnects the electrical circuit in the event of an overcurrent condition, either caused by an overload (when the current exceeds the rated value for a prolonged period) or a short circuit (a sudden surge of current).
• Unlike traditional fuses, which need to be replaced after they blow, MCBs can be reset after they trip, which makes them more cost-effective and convenient.

Schneider Electric:

• Schneider Electric is a global leader in energy management and automation solutions. Their MCBs are known for high-quality performance, reliability, and safety, making them suitable for residential, commercial, and industrial applications.

Key Features of the C-32A DP Schneider DC MCB:

• Current Rating: The 32A rating indicates that the MCB is designed to handle 32 amperes of continuous current in a DC circuit.
• C-curve: The C-curve trip characteristic means the MCB will trip if the current exceeds 160A to 320A (5 to 10 times the rated current), making it suitable for circuits with moderate inrush currents.
• Double Pole (DP): The MCB disconnects both the positive and negative conductors simultaneously, ensuring complete isolation in the event of an overload or fault.
• Overload and Short Circuit Protection: It provides protection from both overload (excessive current over time) and short circuits (immediate surge of current), ensuring safety for both the electrical circuit and connected devices.
• DC-Specific: This MCB is specifically designed for use in DC circuits, ensuring optimal performance and safety in systems that use direct current, such as solar energy systems and battery storage systems.
