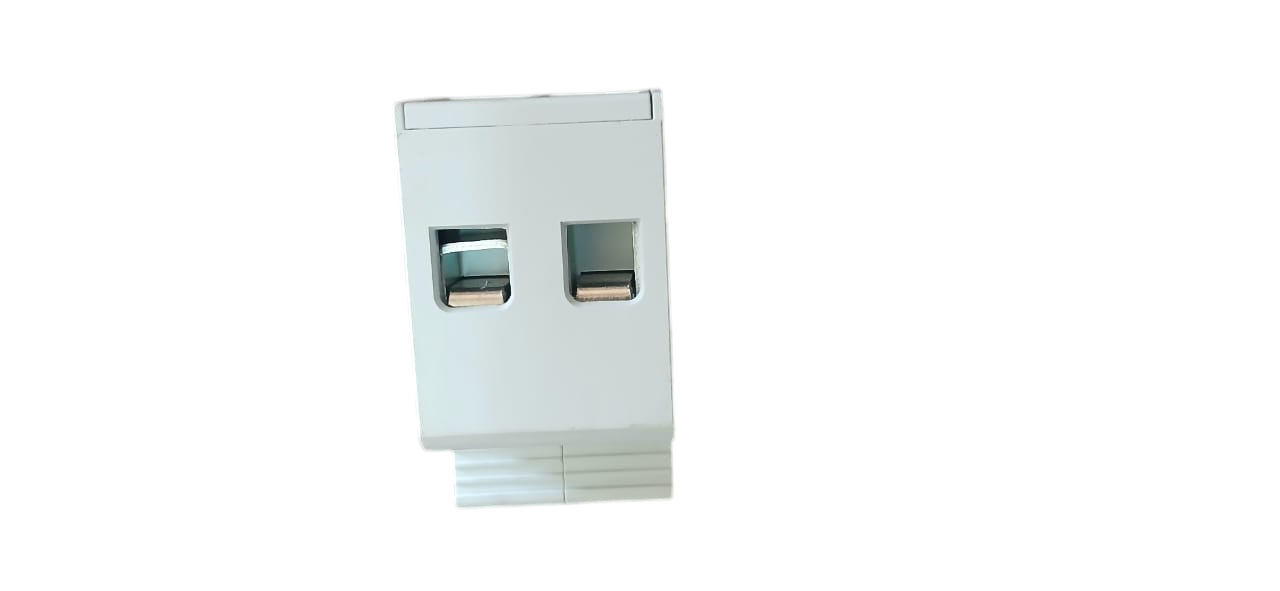

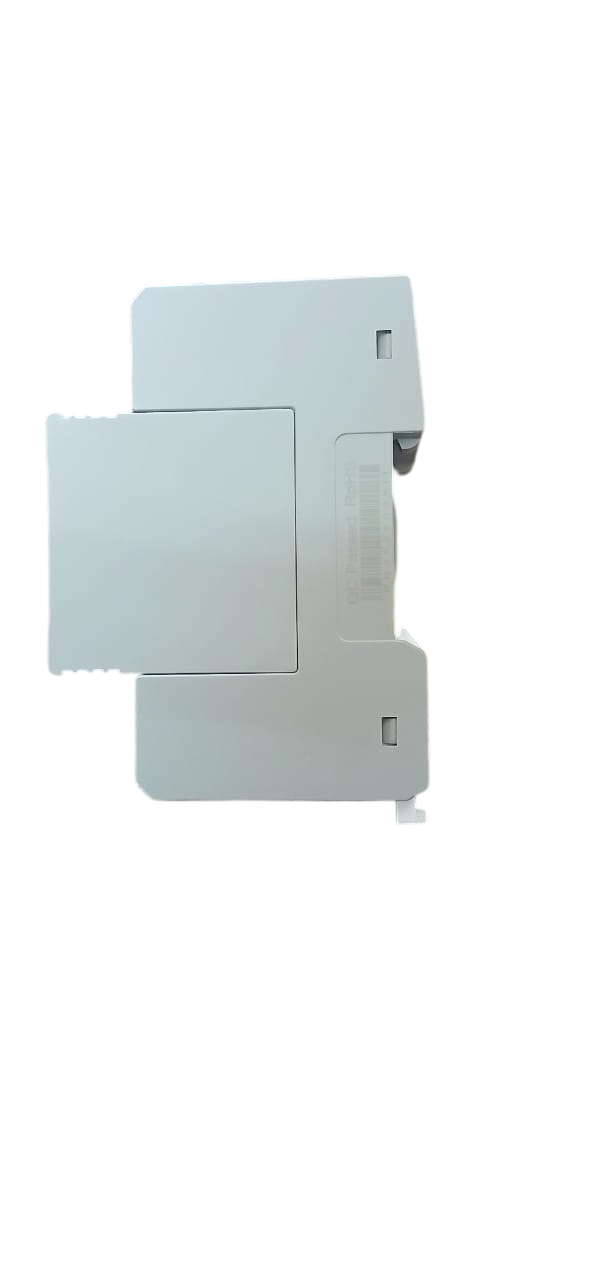

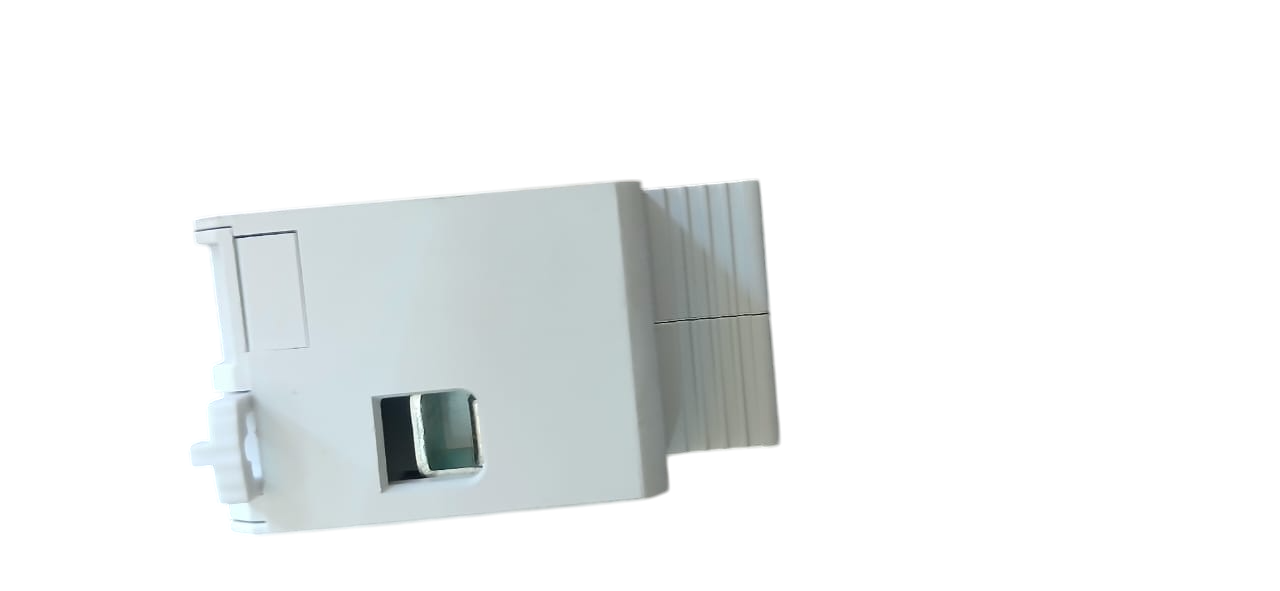

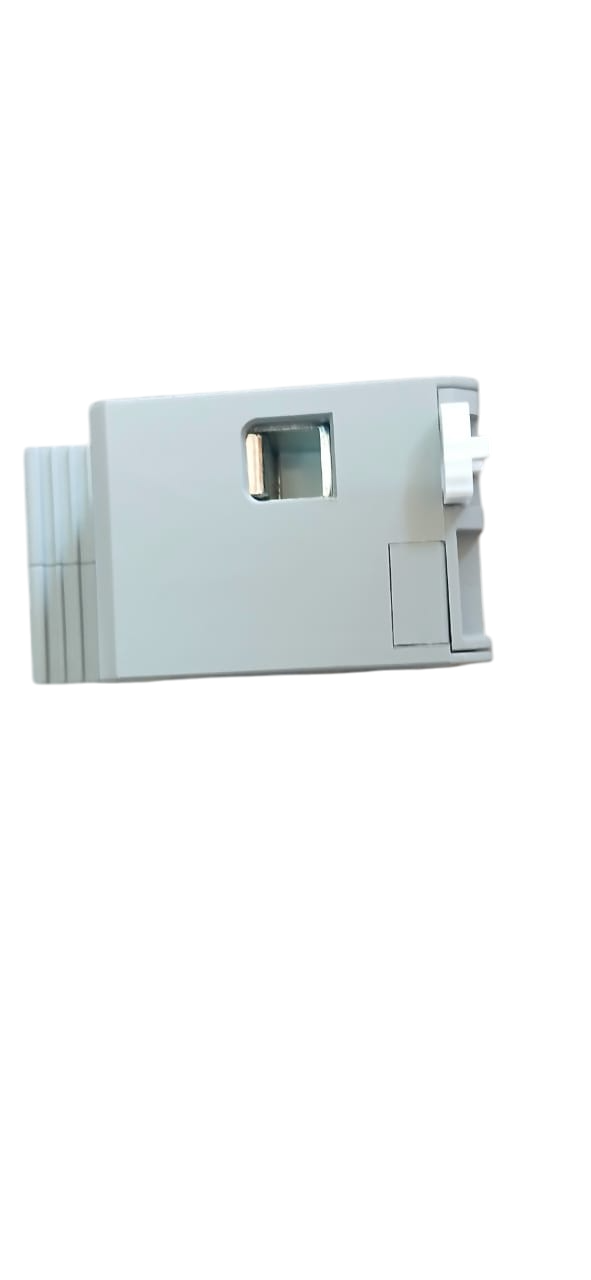

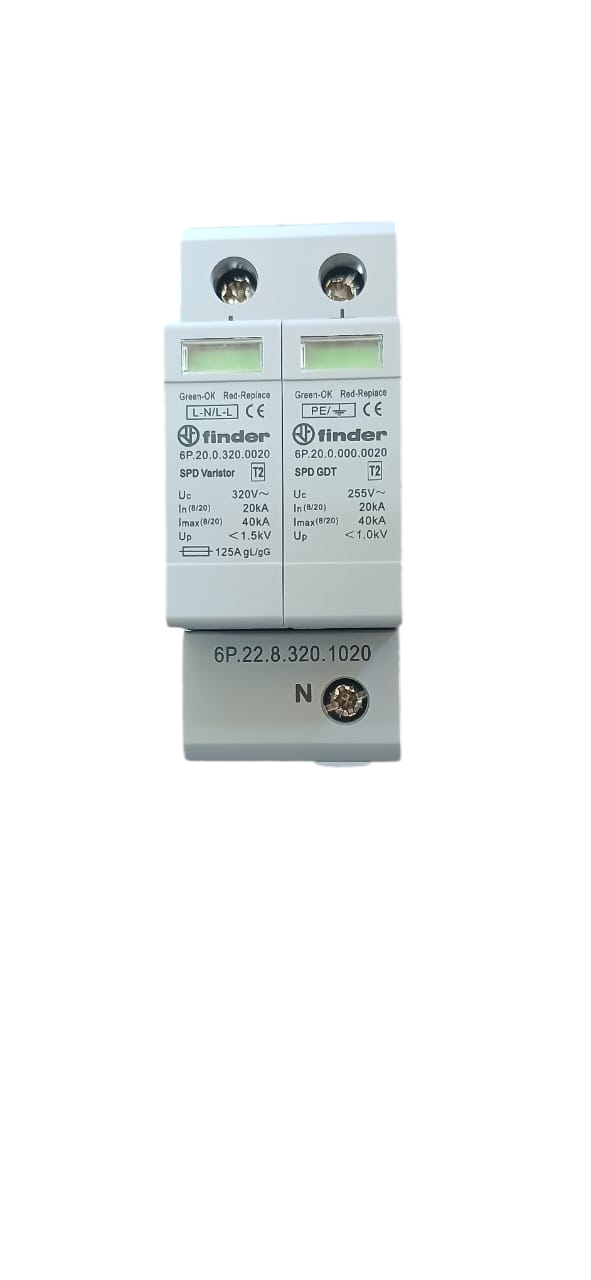

32A FINDER AC SPD

Description

A 32A FINDER SPD refers to a Surge Protection Device (SPD) with a 32 Ampere (A) current rating manufactured by FINDER, a well-known company specializing in electrical components, including surge protection solutions. SPDs are designed to protect electrical equipment from transient voltage spikes or surges, which can be caused by events like lightning strikes, power grid fluctuations, or other sudden electrical disturbances.

Key Features of the 32A FINDER SPD:

1. Current Rating (32A):
   The 32A rating refers to the maximum continuous current that the SPD can safely handle under normal operating conditions in the circuit. This means it is designed to protect circuits with a current capacity of up to 32A, ensuring the safety of electrical systems with moderate to high power requirements.
2. Surge Protection:
   The primary function of the 32A FINDER SPD is to protect electrical circuits and equipment from sudden voltage surges. Surge events can come from various sources, including:
   • Lightning strikes
   • Switching operations (e.g., when high-power devices like motors or HVAC systems are turned on/off)
   • Electrical faults or disturbances in the power grid.

   The SPD diverts excess voltage away from sensitive equipment, preventing damage from these surges.

3. Type of SPD:
   SPDs are classified into different types based on their protection capabilities and installation points:
   • Type 1 SPD: Designed to handle very high surges, typically installed at the main electrical panel to protect the entire electrical system from direct lightning strikes.
   • Type 2 SPD: Installed in the distribution board to protect against less severe surges, such as those induced by lightning or switching operations within the system.
   • Type 3 SPD: Provides additional protection at the point of use, such as at the individual device level, protecting sensitive equipment.

   The 32A FINDER SPD is typically a Type 2 SPD, offering protection against surges caused by lightning strikes or power grid issues.

4. Response Time:
   The SPD has a fast response time, often measured in nanoseconds, to quickly detect and suppress the surge. This ensures that equipment remains protected during transient surges and prevents prolonged exposure to high voltages.
5. Clamping Voltage:
   The clamping voltage is the voltage level at which the SPD activates and diverts excess energy to the ground. A lower clamping voltage is generally better, as it indicates the SPD will react sooner to protect sensitive equipment.
6. Energy Absorption Capacity:
   SPDs are rated based on the amount of energy they can absorb before they become ineffective or need to be replaced. The 32A FINDER SPD has a specific energy rating (often in joules or kA), indicating how much energy it can safely divert before requiring maintenance or replacement.
7. Protection Modes:
   A typical 32A FINDER SPD provides protection in multiple modes:
   • L-N (Line to Neutral): Protects between the live and neutral conductors.
   • L-E (Line to Earth): Protects between the live conductor and earth (ground).
   • N-E (Neutral to Earth): Protects between the neutral conductor and earth.

   These modes ensure comprehensive protection against surges in different parts of the electrical system.
