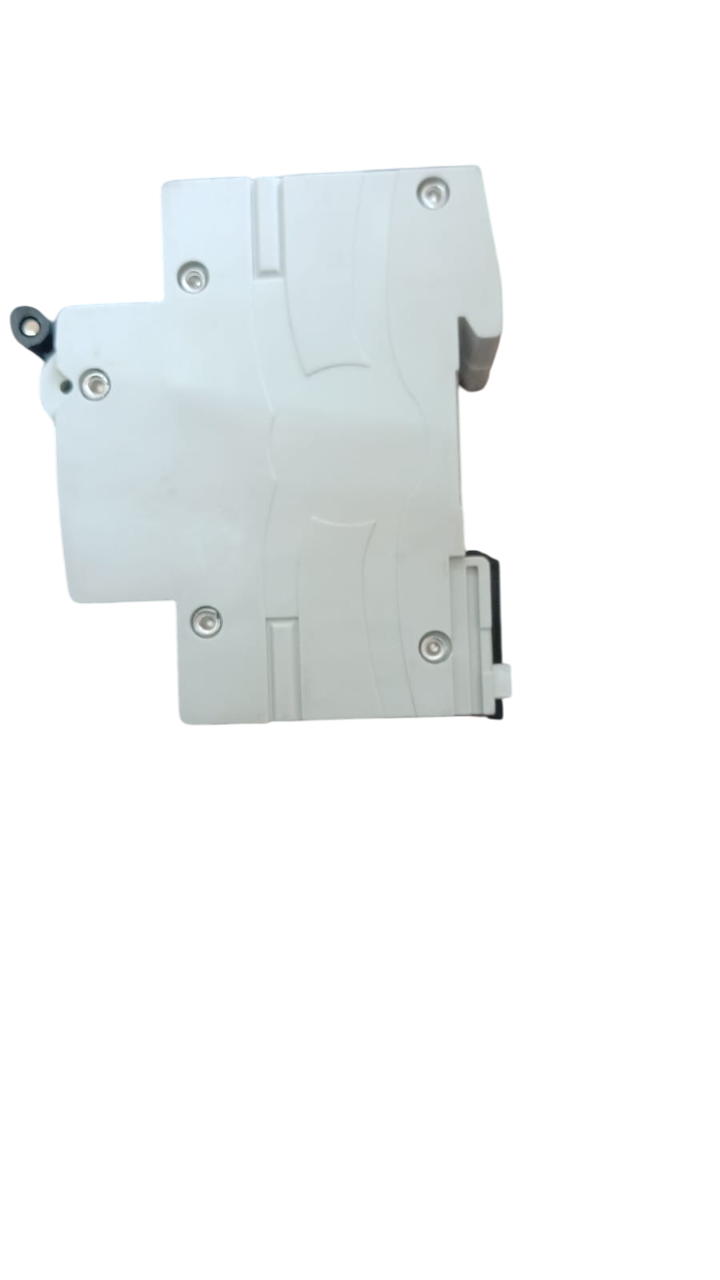

32A FP SCHNAIDER AC MCB

Description

1. C-32A:-C refers to the trip characteristic curve of the MCB. The C-curve indicates that the MCB will trip when the current exceeds 5 to 10 times its rated current. This type of MCB is typically used in circuits with moderate inrush currents, such as those with motors or inductive loads.

• 32A refers to the current rating of the MCB. It is designed to handle 32 amperes of continuous current without tripping under normal conditions.

2. FP (Four Pole):

• Four Pole (FP) MCBs are used in three-phase electrical systems and control four conductors:
  • Three live phases (L1, L2, L3)
  • One neutral (N)
• The four-pole design ensures that all four conductors are disconnected simultaneously in the event of an overload or short circuit, providing complete isolation for safety. This is important in three-phase circuits to prevent imbalance and ensure safe operation.

3. MCB (Miniature Circuit Breaker):

• An MCB is a protective device that automatically disconnects an electrical circuit when it detects an overcurrent (either from an overload or short-circuit). It is designed to protect the wiring and electrical equipment from damage caused by excessive current.

4. Schneider Electric:

• Schneider Electric is a globally recognized company that specializes in energy management and automation. They are known for their reliable and innovative electrical products, including MCBs, which offer high quality and performance in electrical safety and protection.

Key Features of the C-32A FP MCB Schneider:

• Current Rating: 32A, designed for 32 amperes of continuous current under normal operating conditions.
• Type: Four Pole (FP), designed for three-phase electrical circuits, protecting all three phases and neutral simultaneously.
• Curve Type: C-curve, trips the MCB when the current exceeds 5 to 10 times the rated current (i.e., between 160A and 320A), suitable for circuits with moderate inrush currents.
• Protection: Provides protection against overload and short-circuit conditions, ensuring safe operation of the electrical system.
• Safety: Ensures that all four conductors (three phases and neutral) are disconnected in case of a fault, offering complete isolation and preventing damage.

Applications:

• Industrial and Commercial: The C-32A FP MCB is ideal for three-phase circuits commonly used in industrial and commercial settings, including machinery, motors, and large equipment.
• High-Power Loads: It is suitable for circuits that carry higher loads or inductive loads, such as heavy machinery or air-conditioning systems.
• Three-Phase Systems: This MCB is designed for use in three-phase systems, providing protection for both the live and neutral wires in the circuit.

Advantages:

• Complete Isolation: The four-pole design ensures that all conductors, including the neutral, are disconnected simultaneously, providing full protection for the circuit.
• Reliable Protection: Offers reliable protection from overcurrent, preventing damage to equipment and reducing the risk of fire caused by faulty wiring or overloaded circuits.
• Compact and Efficient: Schneider Electric’s MCBs are designed to be compact, making them ideal for use in distribution boards and electrical panels with limited space.
• High Quality: Schneider Electric products are known for their high reliability and long-lasting performance, ensuring the protection of electrical systems.
