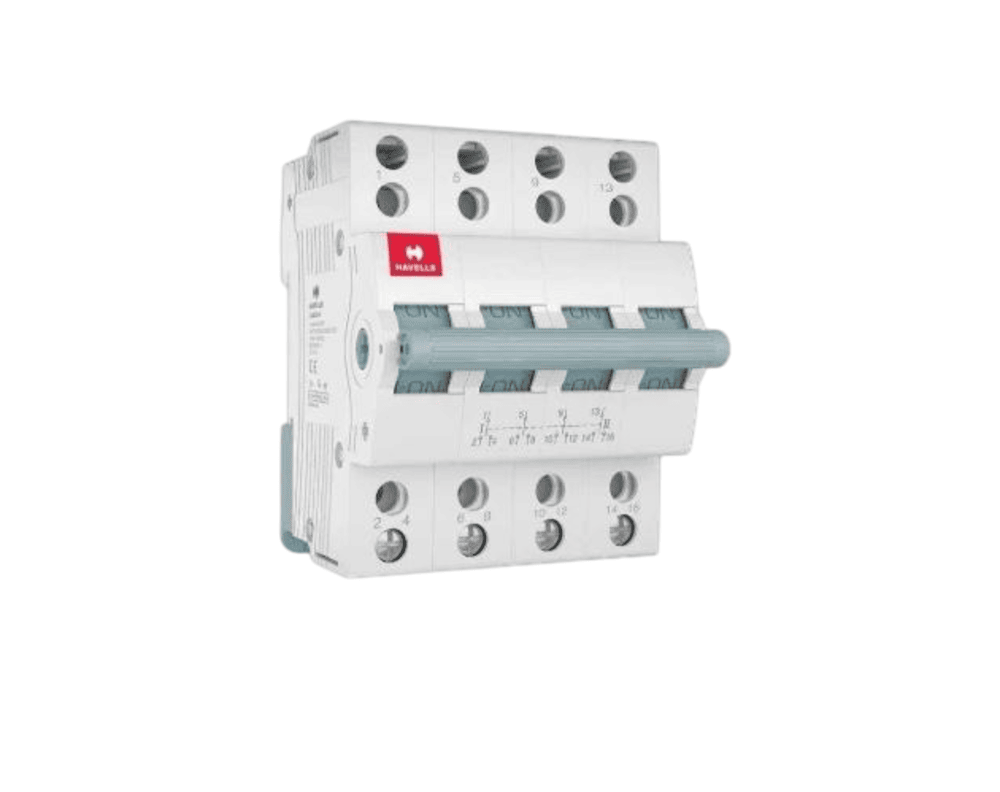

32A HAVELLS FP AC MCB

Description

A 32A FP (Four Pole) MCB from Havells is designed for use in three-phase circuits, specifically for Air Conditioning (AC) or other heavy-duty applications requiring protection from overloads and short circuits.

Breakdown of Features:

1. 32A: This is the current rating, meaning the MCB is designed to handle up to 32 amperes of continuous current. It will trip if the current exceeds this limit, providing protection to the electrical circuit.
2. FP (Four Pole): A four-pole MCB is used for three-phase systems that have three live conductors (phases) and one neutral. In a four-pole MCB, all four conductors (three phases and neutral) are protected and disconnected simultaneously in case of a fault. This type of MCB is commonly used in circuits that require the isolation of all four conductors, such as industrial machinery, large HVAC systems, and three-phase air conditioning systems.
3. MCB (Miniature Circuit Breaker): This is a circuit protection device that automatically disconnects the electrical circuit in case of an overload or short circuit. It prevents damage to appliances, wires, and electrical panels by stopping excess current flow.
4. Brand: Havells: Havells is a trusted brand known for manufacturing high-quality electrical protection devices. Their products are built to meet international standards for safety and performance.

Applications:

• Air Conditioning (AC) Systems: The 32A FP MCB is ideal for large air conditioning units or HVAC systems that run on a three-phase power supply.
• Industrial Machinery: It is also used to protect heavy industrial equipment that requires three-phase electrical supply.
• Commercial and Industrial Buildings: In buildings with large electrical loads, such as factories or office buildings with centralized air conditioning, this type of MCB offers the necessary protection.

Benefits of 32A FP MCB:

1. Enhanced Protection: It disconnects the entire circuit, including all three phases and neutral, ensuring complete isolation in case of overloads or faults.
2. Improved Safety: Protects both the wiring and connected equipment (like AC systems) from damage due to electrical faults.
3. Ideal for Three-Phase Loads: Particularly useful in applications requiring a stable, three-phase current for heavy-duty machinery or equipment.

Specifications:

• Rated Current: 32A (suitable for AC units or equipment with a 32A requirement).
• Pole Configuration: Four poles to protect all conductors (three phases and one neutral).
• Tripping Characteristics: Depending on the model, it may come with different trip curves like B, C, or D, which affect how the MCB responds to overloads.

Summary:

The 32A FP Havells MCB is an ideal choice for protecting three-phase circuits, especially in large AC systems and industrial applications. By providing protection to all conductors in the circuit, it ensures safety from electrical faults and prevents damage to both wiring and equipment.
