ELSUN 1+1 AC SPD

Description

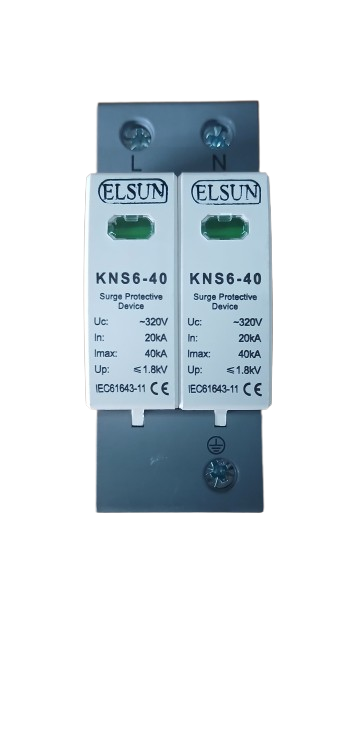

Elsun 1+1 AC SPD – Surge Protection Device

Protect your electrical systems from damaging voltage spikes with the Elsun 1+1 AC SPD. Engineered for reliability and performance, this Surge Protection Device is designed for single-phase AC power systems, offering 1-pole + N (neutral) protection.

Key Features:

• ⚡ 1+1 Protection: Protects both phase and neutral conductors.

• 🔧 DIN Rail Mounting: Easy to install in standard electrical panels.

• 💡 Thermal Disconnection: Ensures safety by cutting off in case of failure.

• ✅ LED Indicator: Provides visual status of protection functionality.

• 🔒 High Discharge Capacity: Effective against lightning-induced surges and transient overvoltages.

Applications:

• Ideal for residential, commercial, and industrial power systems.

• Protects home appliances, office electronics, AC units, and sensitive equipment.

Technical Specifications (Typical):

• Nominal Voltage: 230V AC

• Max Discharge Current (Imax): 20kA to 40kA (based on model)

• Response Time: <25ns

• Mounting: 35mm DIN Rail

• Standards: IEC 61643-11 Compliant
