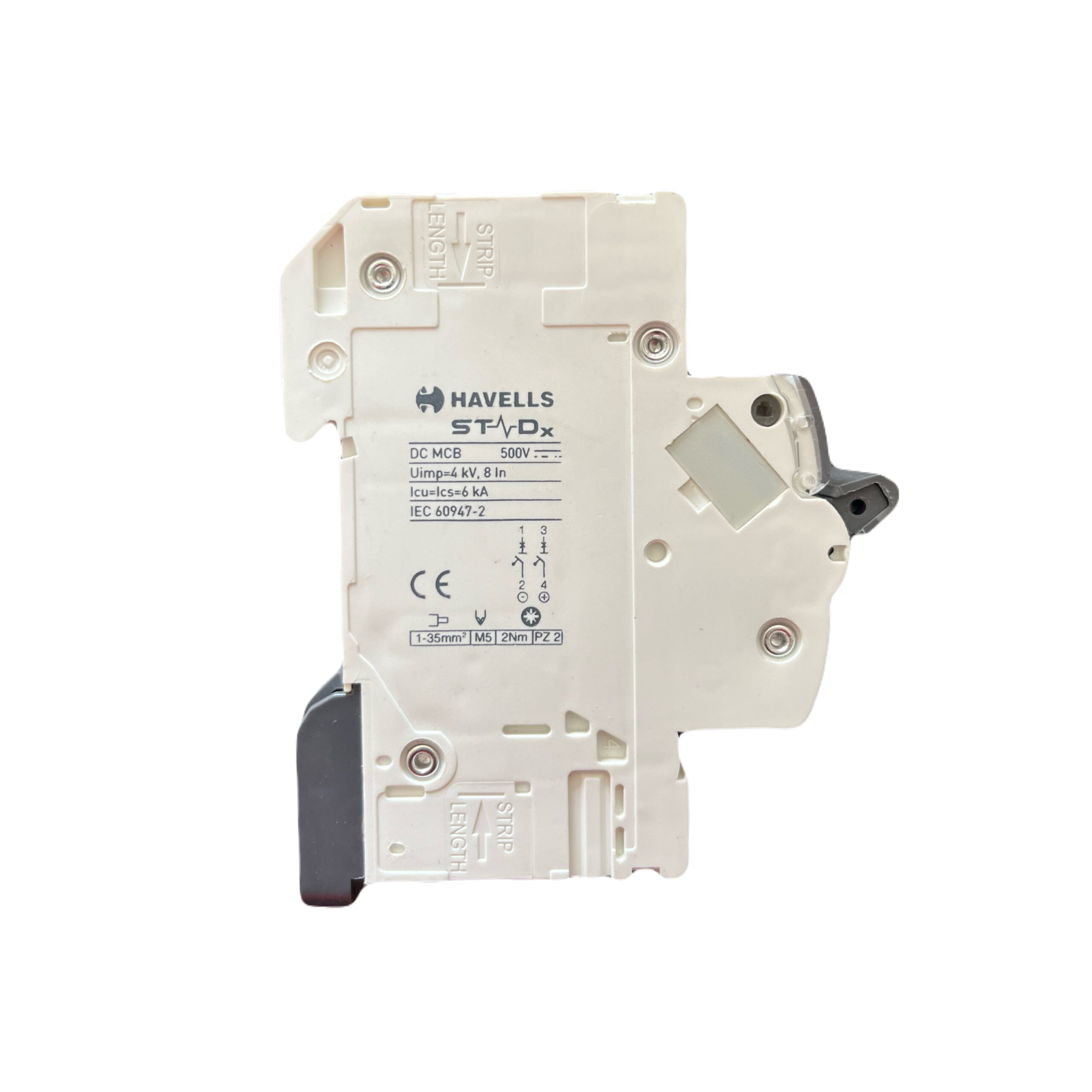

32A HAVELLS DP DC MCB

Description

The 32A DP Havells DC MCB is a 32 Ampere (A) Double Pole (DP) Miniature Circuit Breaker (MCB) specifically designed for Direct Current (DC) circuits. Here’s a detailed breakdown of its features and applications:

1. 32A:

• The 32A rating indicates that the MCB is designed to handle 32 amperes of continuous current in a DC circuit without tripping under normal operating conditions. If the current exceeds this rating, the MCB will trip to protect the circuit from damage.

2. DP (Double Pole):

• Double Pole (DP) means that the MCB is designed to protect two conductors:
  • Positive (P)
  • Negative (N)
• In a DC circuit, the MCB disconnects both the positive and negative conductors simultaneously in the event of an overload or fault. This ensures complete isolation and safety for the circuit, as both conductors need to be disconnected to stop the flow of current and prevent further damage.

3. DC (Direct Current):

• The DC designation indicates that this MCB is specifically designed for Direct Current (DC) circuits, which have a steady flow of electric charge in one direction (unlike Alternating Current (AC), which changes direction periodically).
• DC circuits are used in applications such as solar power systems, battery-powered devices, and low-voltage DC circuits.

4. MCB (Miniature Circuit Breaker):

• An MCB is a protective device used to automatically disconnect the circuit when there is an overcurrent (either overload or short circuit). Unlike fuses, which need to be replaced when blown, MCBs can be easily reset.
• MCBs help prevent damage to equipment, overheating, and fire hazards by interrupting the current flow when it exceeds the safe limit.

5. Havells:

• Havells is a well-known global electrical brand recognized for its high-quality and reliable electrical products, including MCBs. Their products are known for their safety, durability, and efficient performance in both residential and industrial applications.

Key Features of the 32A DP Havells DC MCB:

• Current Rating: 32A, meaning it is designed to handle up to 32 amperes of continuous current in a DC circuit.
• Double Pole (DP): The MCB disconnects both the positive and negative conductors simultaneously to ensure complete isolation and safety in DC circuits.
• DC-Specific Design: It is specifically designed to work in DC circuits, offering protection against overloads and short circuits in systems that use direct current, such as solar power installations, battery-powered systems, and low-voltage circuits.
• Overload and Short Circuit Protection: Provides protection against both overload (when current exceeds the safe value for a period) and short circuit (sudden surge of high current), ensuring the safety of the electrical system and connected equipment.
• Resettable: Unlike traditional fuses, the MCB can be reset once it trips, saving on replacement costs and reducing downtime.

Applications:

• Solar Power Systems: The 32A DP Havells DC MCB is ideal for use in solar power systems, where DC circuits flow from solar panels to batteries or inverters.
• Battery-Powered Devices: Protects battery-operated systems by disconnecting the circuit in case of overcurrent conditions.
