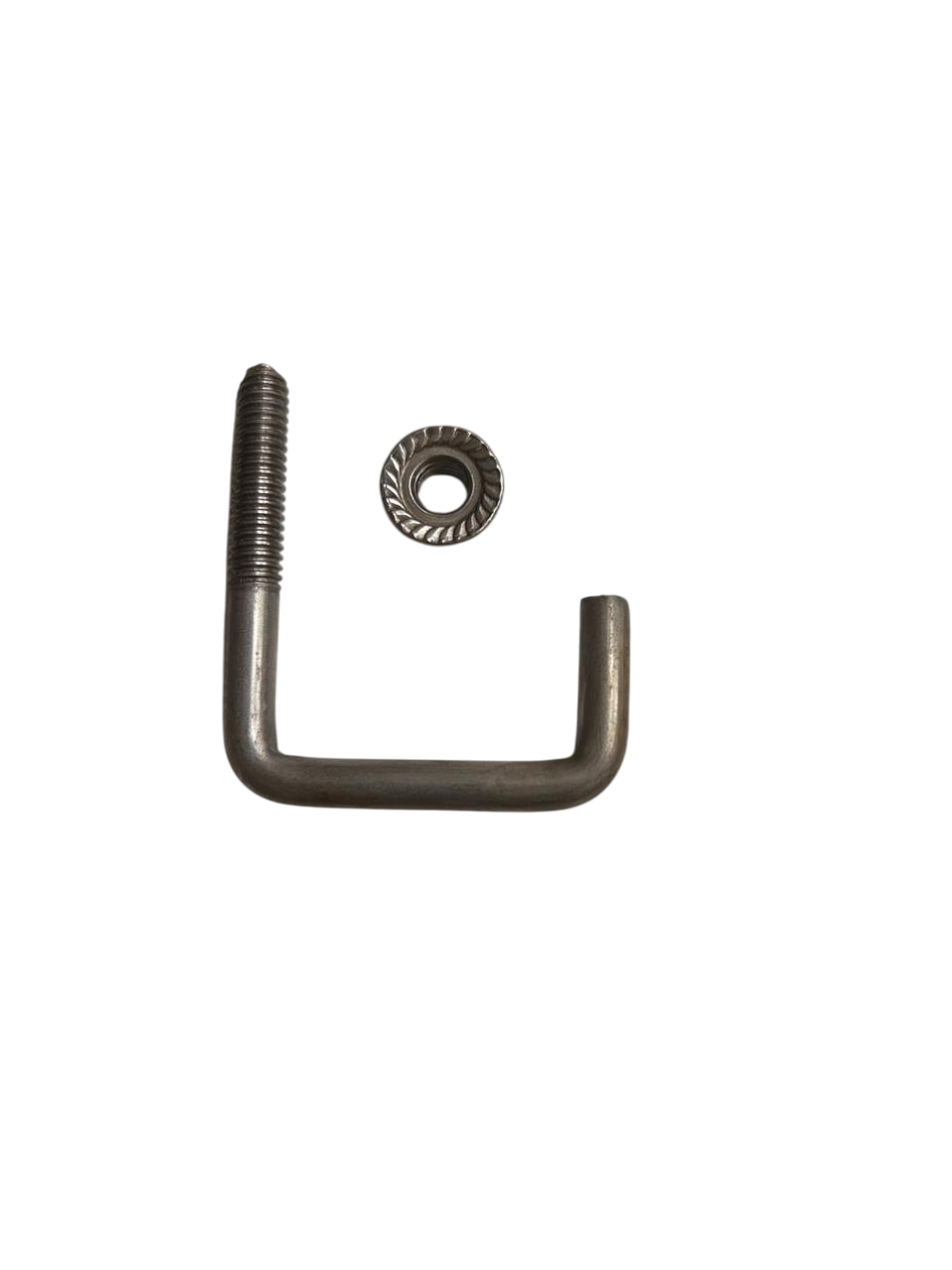

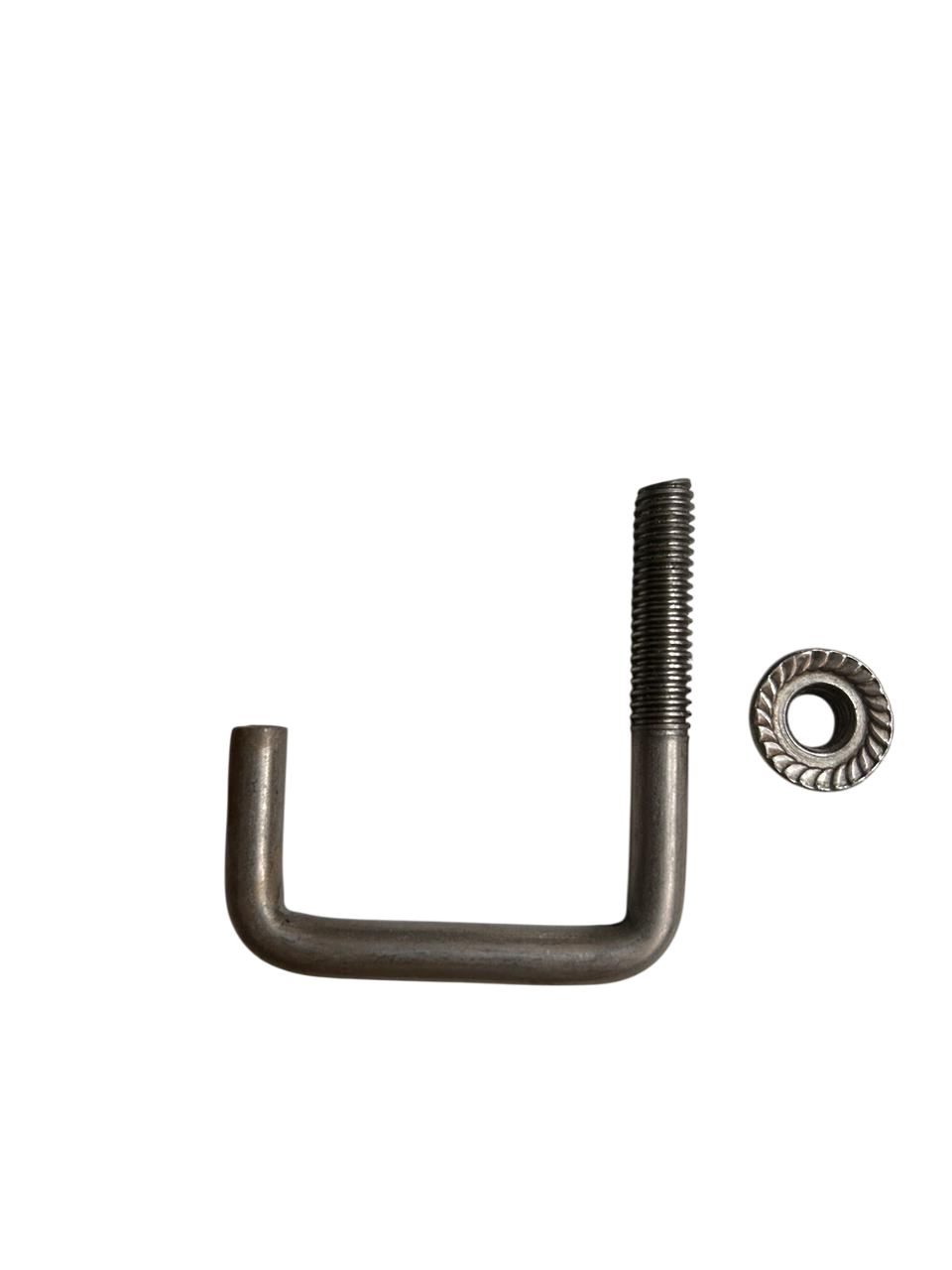

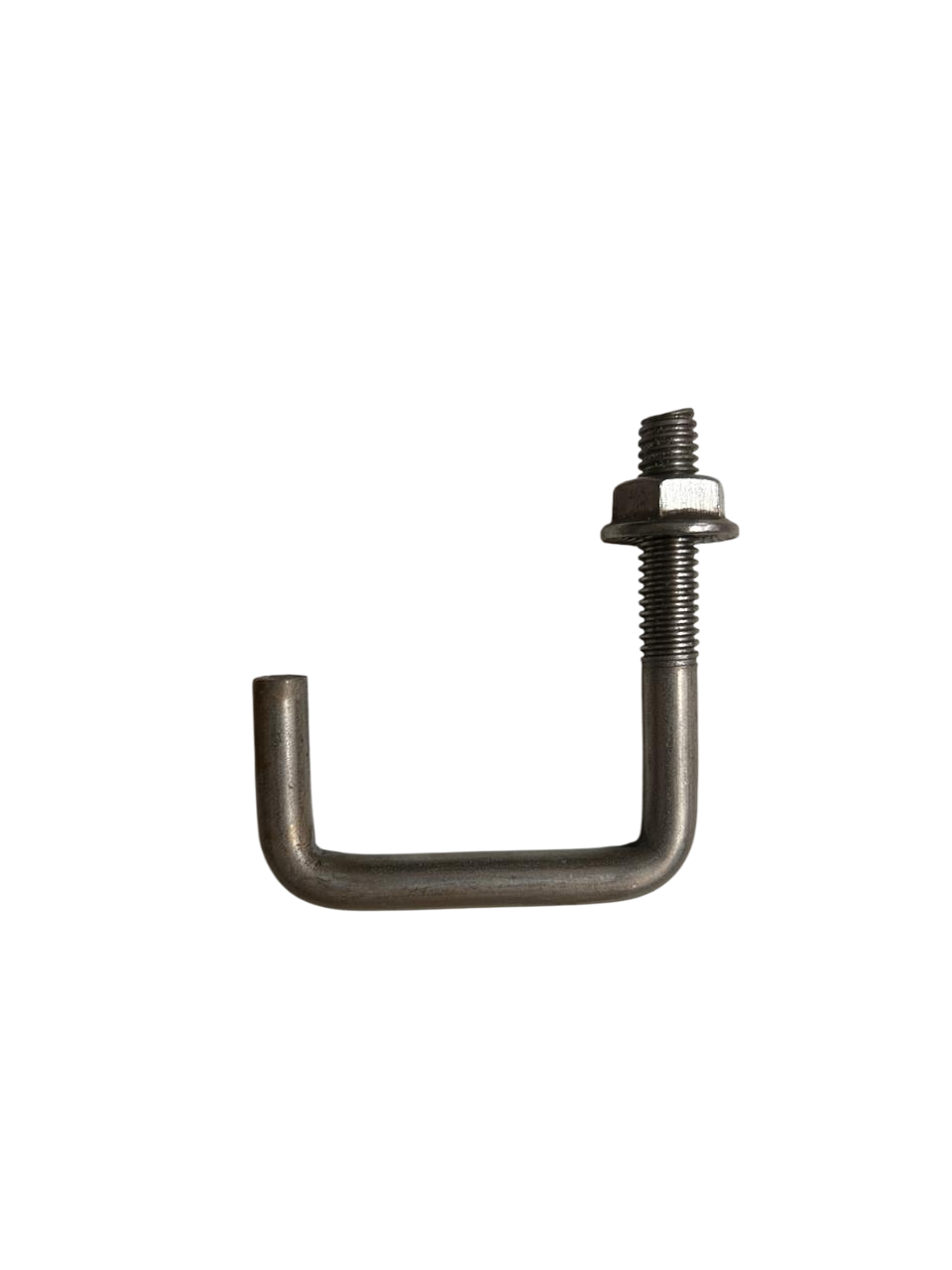

M8 J BOLT 40 X 40

Description

An M8 J Bolt 40 x 40 is a type of fastener commonly used in construction, mounting, and other mechanical applications. Here’s a breakdown of its components and typical uses:

What is an M8 J Bolt?

• M8 refers to the bolt’s diameter, which is 8mm.
• The “J” shape refers to the bolt having a hook-like design, often resembling the letter “J,” which is useful for applications that require the bolt to hold or hang objects.
• 40 x 40 typically refers to the length of the bolt (40mm), and possibly the width of the hook section, though this can vary based on manufacturer or specific design.

Key Features of an M8 J Bolt 40 x 40:

• Material: J bolts are typically made of steel (e.g., carbon steel or stainless steel) to ensure strength and durability. They may also be galvanized or coated for additional corrosion resistance, especially for outdoor or marine applications.
• Diameter (M8): The “M” in M8 signifies a metric thread with an 8mm diameter, which would be compatible with nuts, washers, or threaded inserts designed for M8 bolts.
• Shape: The J-shaped hook on one end allows the bolt to be used for hanging or securing objects by anchoring them to a surface like a beam or wall. The other end typically has a threaded section, which allows it to be tightened with a nut.
• Length (40mm): The 40mm measurement typically refers to the total length of the bolt. The “J” section might be part of this length or could extend further depending on the design.

Common Uses of an M8 J Bolt 40 x 40:

1. Mounting and Securing Objects:
   • Solar Panel Mounting: Often used in solar installations to attach brackets or rails to a structure.
   • Cable Management: Can be used for securing cables or conduit along beams, walls, or other structures.
2. Construction and Structural Applications:
   • Hanging Structures: Ideal for situations where a bolt is needed to hang or secure items to walls, beams, or ceilings.
   • Supporting Equipment: Used in supporting HVAC systems, piping, or other heavy machinery or equipment.
3. Marine and Outdoor:
   • Boat and Dock Mounting: The hook shape allows for easy installation of ropes, chains, or other hanging fixtures on boats, docks, or outdoor structures.
4. Tensile and Load-Bearing Applications:
   • Can be used where you need to bear weight, especially in tension-based applications, where the J-bolt’s hook keeps things anchored firmly.

Installation Considerations:

• Nut Size: Since the bolt is M8, you would typically use an M8 nut for fastening.
• Washers: You may also use washers (flat or lock washers) to ensure a tighter, more secure fit and to prevent loosening over time.
• Threaded Section: The threaded part of the bolt can be used with a nut, washer, or other fitting for a secure connection.

Variants:

• The M8 J Bolt 40 x 40 may come in different material grades (like stainless steel or zinc-coated) depending on the environment in which it will be used. Make sure to choose the appropriate material for corrosion resistance if using it outdoors or in humid environments.
