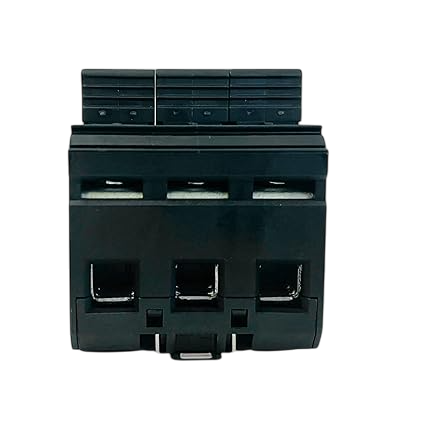

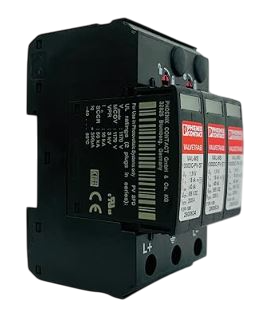

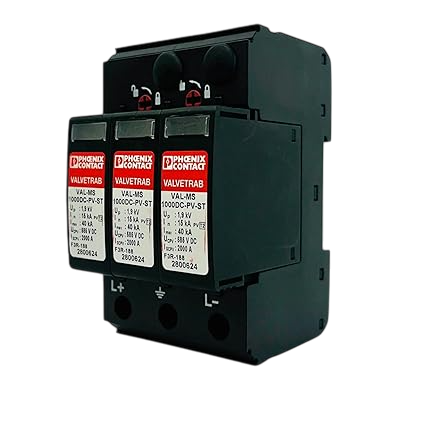

PHOENIX 1000V DC SPD

Description

The PHOENIX 1000V DC Surge Protective Device (SPD) is designed to safeguard electrical systems from transient voltage spikes, particularly in high-voltage direct current (DC) applications. Here’s a detailed overview of its features, functions, and benefits:

Description

1. Specifications:
   • Voltage Rating: Rated for a maximum of 1000 volts DC, making it suitable for various high-voltage DC applications, including solar photovoltaic (PV) systems and industrial battery setups.
   • Nominal Discharge Current (In): Designed to handle significant surge currents, ensuring effective protection for connected equipment.
2. Design and Construction:
   • Compact Housing: Features a robust, compact design for installation in electrical panels, often configured for DIN rail mounting for easy integration into existing systems.
   • High-Quality Materials: Built with durable materials that ensure longevity and resistance to environmental factors, including UV exposure and moisture.
3. Surge Protection Features:
   • Multi-Stage Protection: Incorporates multiple protection stages, including metal oxide varistors (MOVs) and gas discharge tubes, to efficiently divert excess voltage away from sensitive equipment.
   • Fast Response Time: Engineered to respond rapidly to transient overvoltages, minimizing the risk of damage to connected devices.
4. Indicators:
   • Visual Status Indicators: Equipped with LED indicators that display operational status, allowing users to easily monitor functionality and identify when the SPD has tripped due to a surge.
5. Applications:
   • Solar Energy Systems: Commonly used in solar PV installations to protect inverters, charge controllers, and other critical components from surge damage.
   • Industrial Applications: Suitable for various industrial DC applications where equipment protection from transients is essential.

Benefits

• Enhanced Equipment Longevity: Protects sensitive electronic devices from damaging voltage spikes, which helps to extend their operational life.
• Improved Safety: Reduces the risk of electrical hazards, such as fires and equipment failure, contributing to a safer environment.
• Cost-Effective Solution: Provides an economical way to protect valuable equipment, potentially reducing repair and replacement costs.

Usage Tips

• Proper Installation: Follow the manufacturer’s installation guidelines to ensure compliance with electrical standards and optimal performance.
• Regular Maintenance: Periodically inspect the SPD and check the status indicators to ensure it remains functional and effective.
• Compatibility: Confirm that the SPD is suitable for the specific voltage and current ratings of the DC system it is designed to protect.

Overall, the PHOENIX 1000V DC SPD is a crucial component for safeguarding high-voltage DC electrical systems, offering reliable protection against transient voltage spikes and enhancing the overall performance and reliability of solar and other renewable energy systems.
