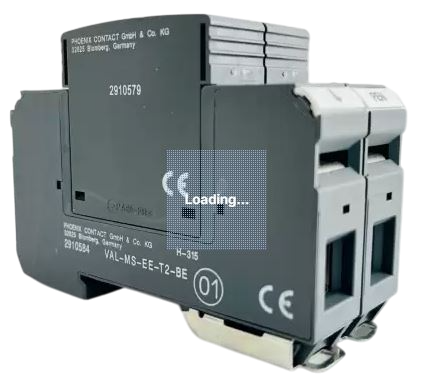

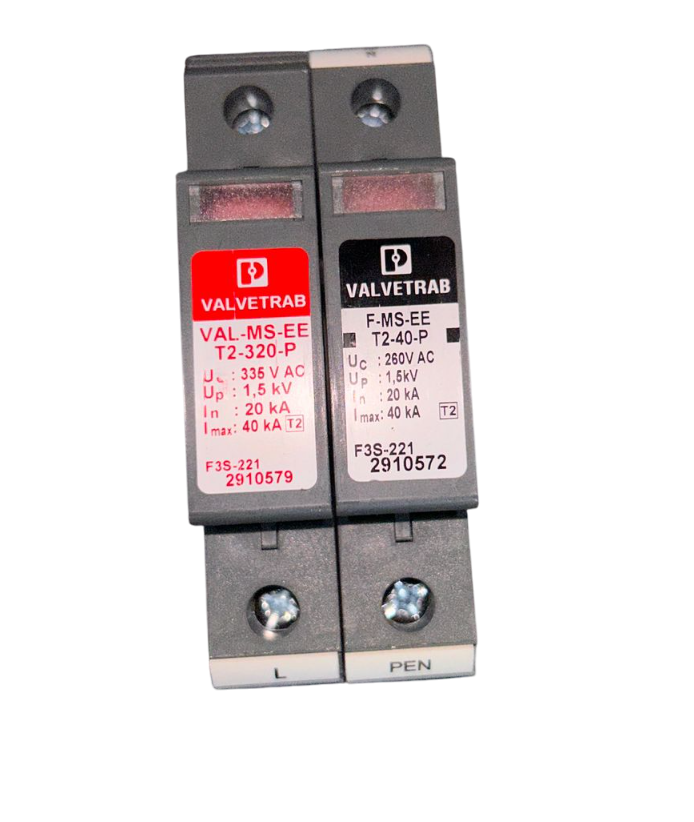

PHOENIX 1+1 AC SPD

Description

The PHOENIX 1+1 AC SPD Surge Protective Device (SPD) is designed to protect electrical systems from voltage spikes and transients, particularly in single-phase AC applications. Here’s a detailed overview of its features, functions, and benefits:

Description

1. Specifications:

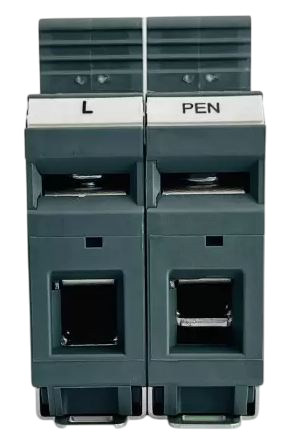

   • 1+1 Configuration: This refers to the device’s ability to protect two conductors, typically one phase (L) and a neutral (N) or ground (PE), providing effective surge protection for both lines.
   • Voltage Rating: Usually rated for common AC voltages, such as 230V or 400V, depending on the specific model.
2. Design and Construction:
   • Compact Housing: Designed for easy installation in electrical panels, often featuring a compact form factor that allows for DIN rail mounting.
   • Durable Materials: Built with high-quality materials that ensure longevity and resistance to environmental factors, such as humidity and temperature fluctuations.
3. Surge Protection Features:
   • Multi-Stage Protection: Incorporates multiple protective elements, such as metal oxide varistors (MOVs) and gas discharge tubes (GDTs), to effectively divert excess voltage away from sensitive equipment.
   • Fast Response Time: Engineered to respond quickly to voltage transients, minimizing the risk of damage to connected devices.
4. Indicators:
   • Status Indicators: Equipped with LED indicators that show the operational status of the SPD, making it easy to monitor whether the device is functioning properly or has been tripped due to a surge.
5. Applications:
   • Residential and Commercial: Ideal for use in homes and commercial buildings to protect electrical systems, appliances, and sensitive electronics from surges.
   • Industrial Equipment: Commonly used to protect machinery and equipment in industrial settings, helping to ensure operational continuity.

Benefits

• Enhanced Equipment Longevity: Provides critical protection for sensitive electronic devices, extending their operational lifespan and reducing the risk of premature failure.
• Improved Safety: Reduces the likelihood of electrical fires and other hazards associated with voltage spikes, enhancing overall safety.
• Cost-Effective Protection: Offers an economical solution to safeguard valuable equipment, potentially lowering repair and replacement costs.

Usage Tips

• Proper Installation: Follow the manufacturer’s installation guidelines to ensure compliance with electrical codes and optimal performance.
• Regular Maintenance: Periodically check the SPD and its indicators to confirm that it remains operational and has not been compromised by surge events.
• Compatibility Check: Ensure that the SPD is suitable for the specific electrical system and voltage ratings it is intended to protect.

Overall, the PHOENIX 1+1 AC SPD is an essential component for protecting AC electrical systems from transient voltage spikes, ensuring the reliability and longevity of connected devices and enhancing overall safety in residential, commercial, and industrial applications.
