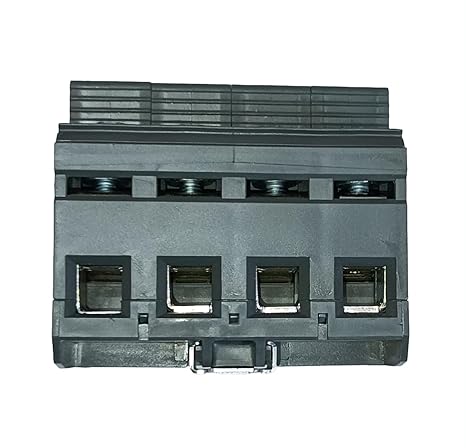

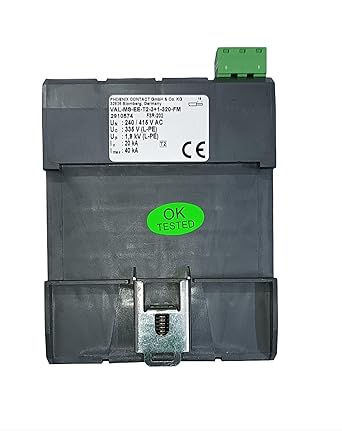

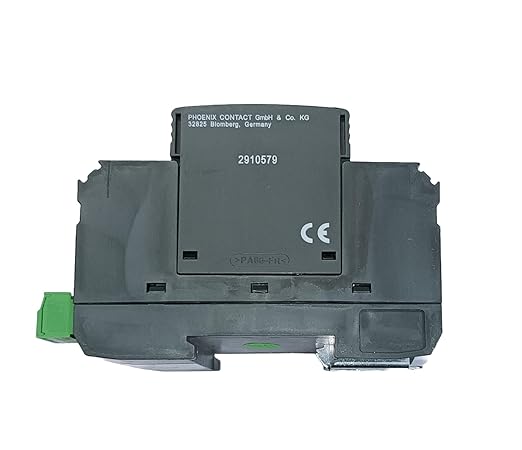

PHOENIX 3+1 AC SPD

Description

The Phoenix Contact 3+1 AC Surge Protection Device (SPD) is designed to protect AC power systems from transient overvoltage caused by lightning strikes or switching events. The “3+1” designation typically indicates that the device offers protection for three phases plus a neutral.

Key Features:

1. 3-Phase Protection: Protects all three phases of an AC system, as well as the neutral.
2. Compact Design: Suitable for installation in distribution boards or control panels.
3. Low Residual Voltage: Offers effective clamping to minimize the voltage that reaches sensitive equipment.

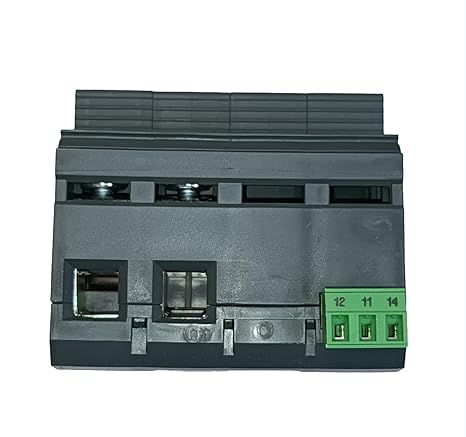

4. LED Status Indicators: Provide visual confirmation of operational status and fault conditions.

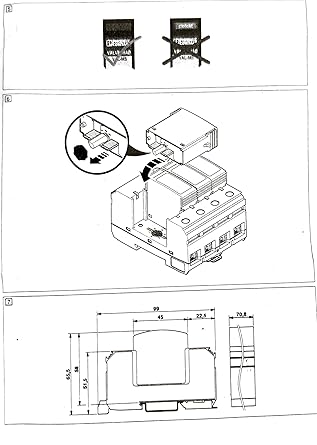

5. Modular Construction: Allows for easy replacement of individual components if one fails.

Applications:

• Industrial and commercial buildings
• Renewable energy systems (such as wind and solar)
• Data centers and telecommunications
• Any AC power distribution system requiring surge protection

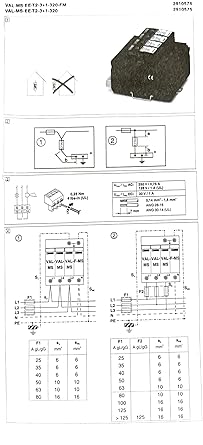

Installation Considerations:

• Ensure compliance with local electrical codes and standards.
• Proper grounding is essential for effective surge protection.
• Regular maintenance checks are recommended to ensure continued functionality.
