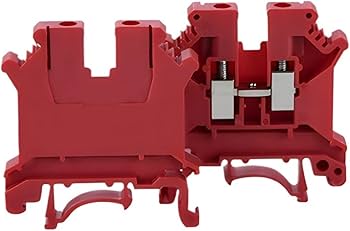

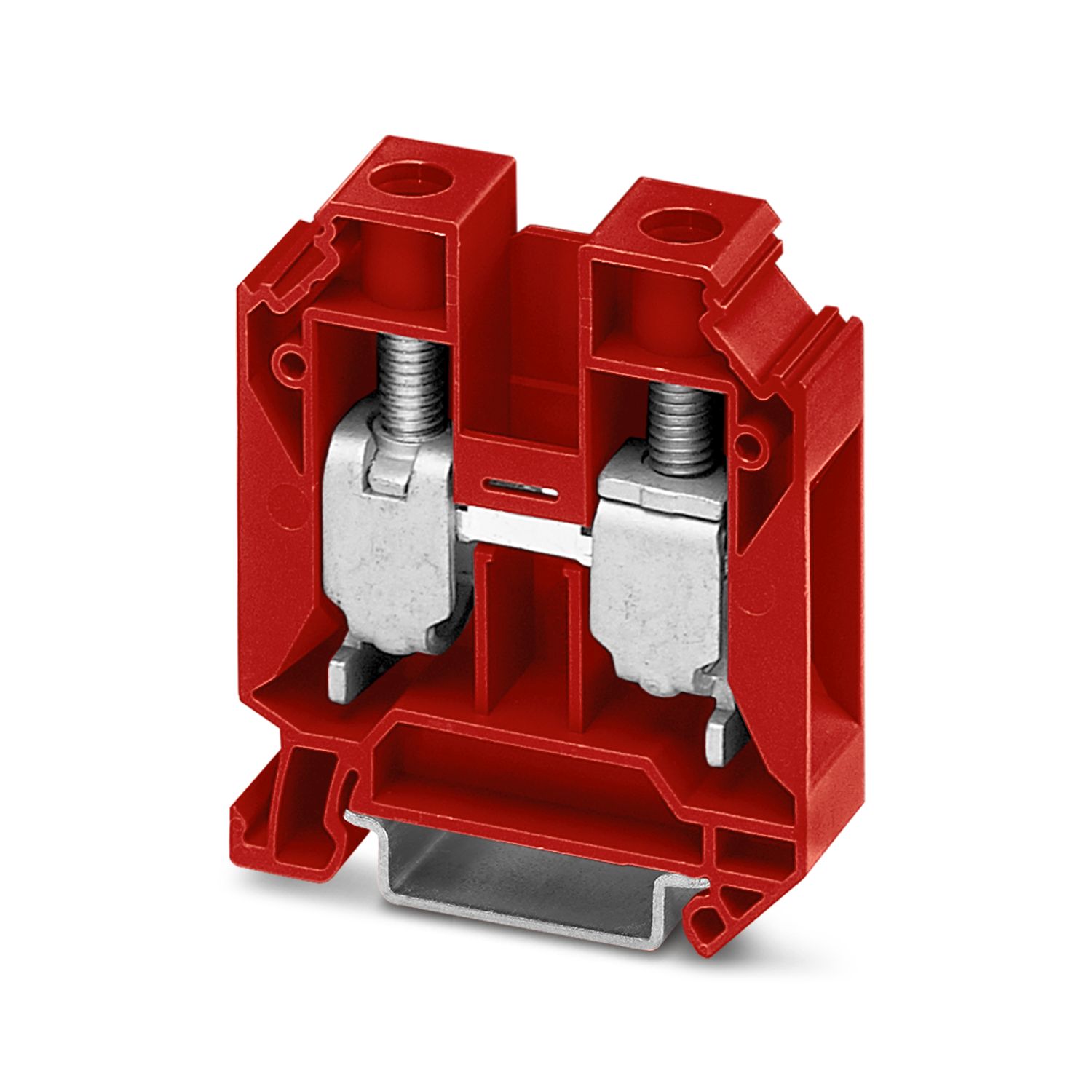

PHOENIX 6 MM RED TERMINAL

Description

• Part Number: 3070341

• Type: Feed-through terminal block

• Mounting: DIN rail (NS 35/7.5, NS 35/15, NS 32)

• Connection Method: Screw connection with spring support

• Number of Connections: 2

• Number of Levels: 1

• Color: Gray

• Material: Polyamide (PA)

• Dimensions:

  • Width: 8.2 mm

  • Length: 59.6 mm

  • Height: 51 mm (NS 35/7.5), 58.5 mm (NS 35/15), 56 mm (NS 32)

• Weight: Approximately 18 gRSP Supply+1RS Online+1Phoenix Contact+5GlobalSpec Datasheets+5RS Online+5Electric Automation Network+5RS Online+5Phoenix Contact+5Electric Automation Network+1bpx.co.uk+1nexxconn

⚡ Electrical Specifications

• Nominal Voltage: 1000 V

• Nominal Current: 41 A

• Maximum Load Current: 57 A

• Rated Surge Voltage: 6 kV

• Conductor Cross Section:

  • Solid: 0.2 mm² to 10 mm²

  • Flexible: 0.2 mm² to 6 mm²

  • AWG: 24 to 8

• Stripping Length: 12 mm

• Screw Thread: M4

• Tightening Torque: 1.5–1.8 NmPhoenix Contact+4Electric Automation Network+4GlobalSpec Datasheets+4Electric Automation Network+3GlobalSpec Datasheets+3bpx.co.uk+3

✅ Features & Benefits

• Universal Mounting: Compatible with various DIN rail types (NS 35/7.5, NS 35/15, NS 32), offering flexibility in installation.

• Secure Connections: The screw connection with spring support ensures a stable and reliable electrical contact.

• Wide Compatibility: Suitable for a range of conductor sizes, making it versatile for different applications.

• High Current Capacity: With a nominal current rating of 41 A and a maximum load current of 57 A, it supports substantial power requirements.

• Durable Construction: Made from high-quality polyamide, ensuring longevity and resistance to environmental factors.Electric Automation Network+5bpx.co.uk+5GlobalSpec Datasheets+5
