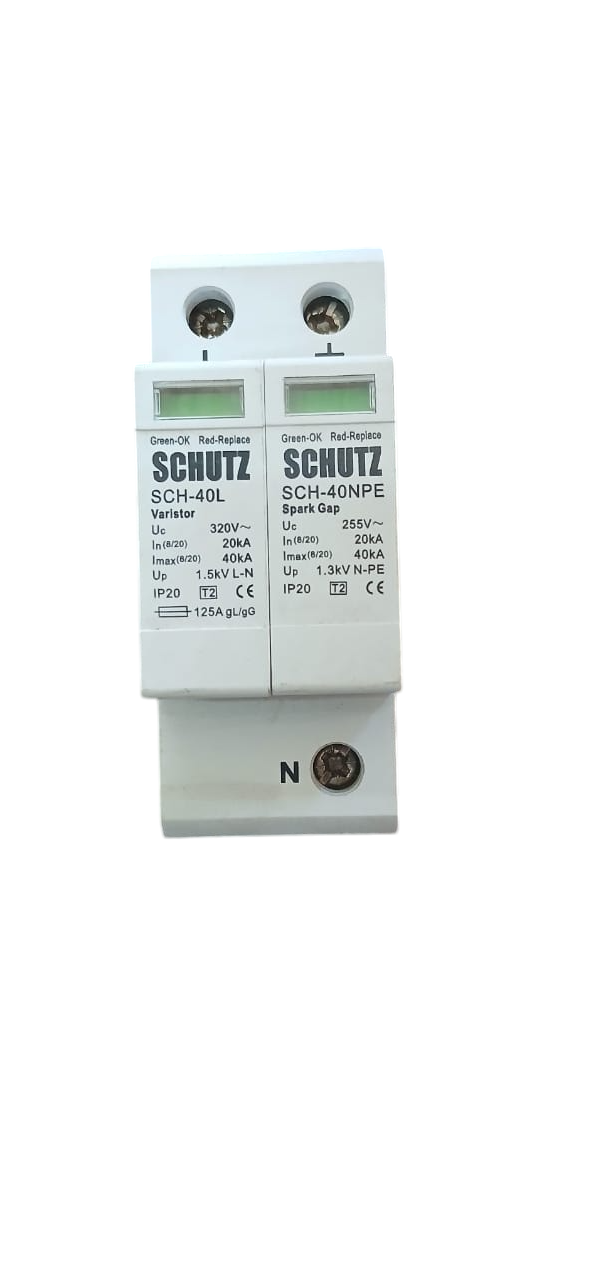

SCHUTZ 1+1 AC SPD

Description

A 32A SCHUTZ SPD refers to a 32 Ampere Surge Protection Device (SPD) manufactured by SCHUTZ, a brand that produces electrical protection products. This device is designed to protect electrical circuits and equipment from transient voltage spikes or surges caused by events like lightning strikes, power grid fluctuations, or switching operations.

Key Features of the 32A SCHUTZ SPD:

1. Current Rating: The 32A rating refers to the maximum current the SPD can handle under normal operation. This indicates that the device is designed for use in circuits with a current capacity of up to 32A.
2. Surge Protection: The primary function of the SPD is to protect electrical equipment from voltage surges. Voltage surges can occur due to:
   • Lightning strikes
   • Switching of electrical loads
   • Electrical faults in the power grid

   When a surge occurs, the SPD diverts the excess voltage to the ground, preventing it from reaching sensitive equipment.

3. Type of SPD: SCHUTZ SPDs typically come in various types based on their application:
   • Type 1 SPD: For direct lightning strikes, typically installed at the main service entrance.
   • Type 2 SPD: Protects against surges from internal sources (like lightning-induced surges or switching operations) and is usually installed in distribution boards or panels.
   • Type 3 SPD: Installed at the final distribution point, such as at individual devices or outlets, offering additional protection.
4. Response Time: SPDs have a very fast response time to divert excess voltage, typically within nanoseconds, to ensure that sensitive equipment is not exposed to damaging surges.
5. Clamping Voltage: This is the voltage level at which the SPD starts to work, diverting excess energy. A lower clamping voltage provides better protection, as it activates sooner in the event of a surge.
6. Energy Handling Capability: The SPD is rated based on the amount of energy it can absorb before it fails. Higher energy ratings provide better protection against larger surge events. This would be indicated in joules or kA (kiloamps) of surge current capacity.
7. Protection Mode: Some SPDs protect in different modes, such as:
   • L-N (Line to Neutral)
   • L-E (Line to Earth)
   • N-E (Neutral to Earth)

   This ensures protection across all possible paths for surge energy.

8. Status Indication: Many SCHUTZ SPDs feature an indicator to show whether the device is working properly or needs replacement after a surge event. Some models also come with an alarm feature to alert when protection is compromised.

Applications of a 32A SCHUTZ SPD:

• Residential: Protects home appliances, electronics, and sensitive equipment like computers, refrigerators, and HVAC systems from electrical surges.
• Commercial: Safeguards office equipment, computers, servers, and other sensitive devices in commercial setups.
• Industrial: Protects machinery, PLCs, control systems, and other industrial equipment from transient voltage spikes caused by switching or external surges like lightning.
• Telecommunication: Protects telecom equipment from power surges or lightning strikes.
