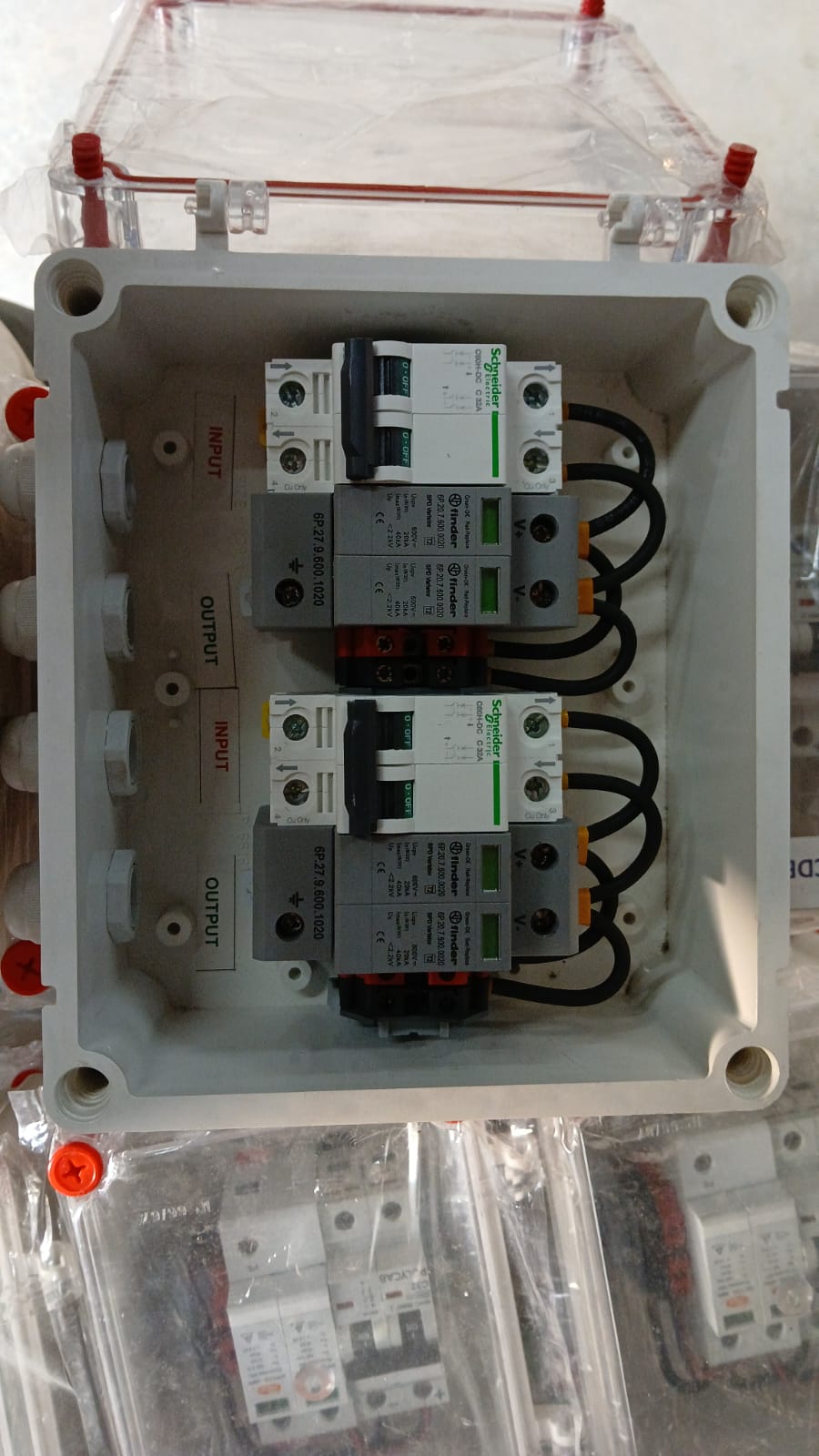

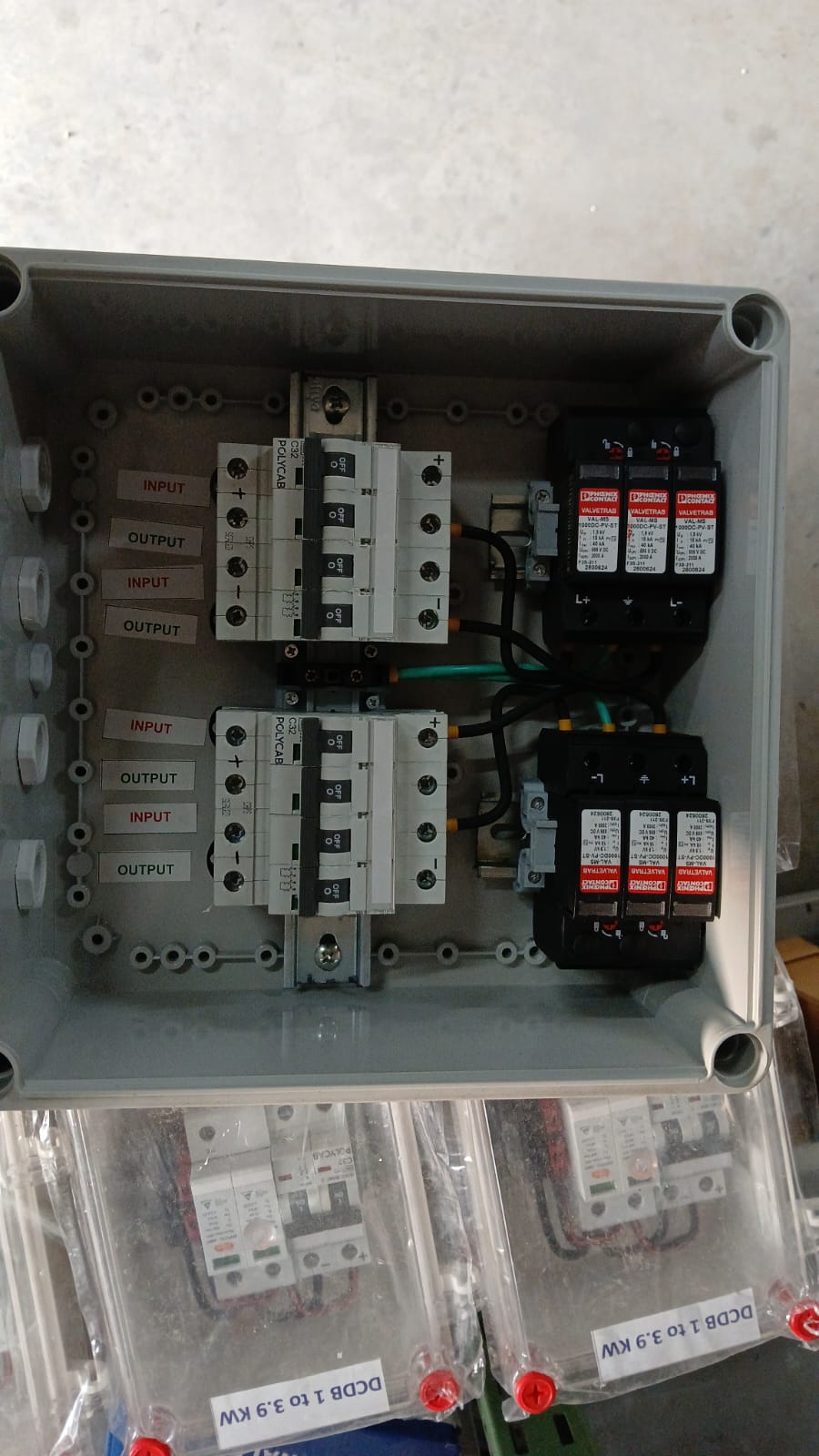

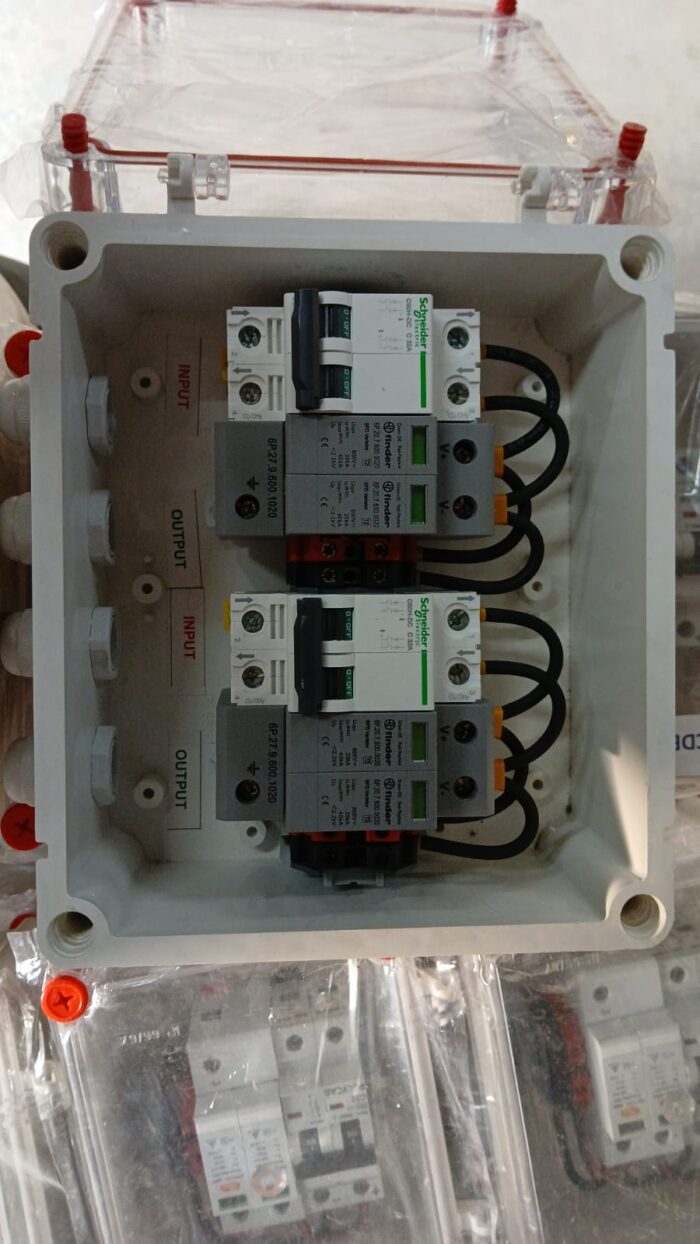

Solar Dcdb 2 In 2 Out

Description

A Solar DC Distribution Board (DCDB) configured with 2 inputs and 2 outputs is designed to manage and distribute direct current (DC) electricity in solar power systems effectively. Here’s a detailed description:

Description:

1. Purpose:
   • The Solar DCDB is used to distribute the DC power generated from multiple strings of solar panels to inverters or loads, enhancing the system’s efficiency and safety.
2. Configuration:
   • 2 Inputs: This allows for connections from two separate strings of solar panels, which can be configured in series or parallel. This flexibility enables better energy management and optimization of solar energy capture.
   • 2 Outputs: Each output connects to either a separate inverter or a load, facilitating the distribution of power to different areas or systems.
3. Components:
   • Input Terminals: For connecting the two solar panel strings. Each terminal typically includes protective devices.
   • Output Terminals: For connecting to two inverters or loads, ensuring proper energy flow.
   • Circuit Protection: Includes DC circuit breakers or fuses for each input and output to protect against overloads and short circuits, ensuring safety and system reliability.
   • Surge Protection Devices (SPD): These are included to protect against voltage spikes, safeguarding the system from potential damage.
   • Metering Equipment (optional): Devices like DC ammeters or voltmeters to monitor the performance of each input and output.
4. Construction:
   • Housed in a durable, weatherproof, or insulated enclosure to ensure safety and protection against environmental factors.
   • Designed for easy access for maintenance, monitoring, and troubleshooting.
5. Applications:
   • Commonly used in larger residential, commercial, or industrial solar power systems where multiple strings of panels are employed.
   • Ideal for off-grid or grid-tied systems, enhancing power distribution flexibility.
6. Safety Features:
   • Designed to comply with electrical safety standards, minimizing risks associated with DC systems.
   • Includes proper grounding and isolation features to protect personnel and equipment.

Conclusion:

A Solar DCDB with 2 inputs and 2 outputs is essential for effectively managing and distributing DC power in solar energy systems, providing flexibility, safety, and reliability. If you need more specific information on installation, specifications, or operational details, feel free to ask!
