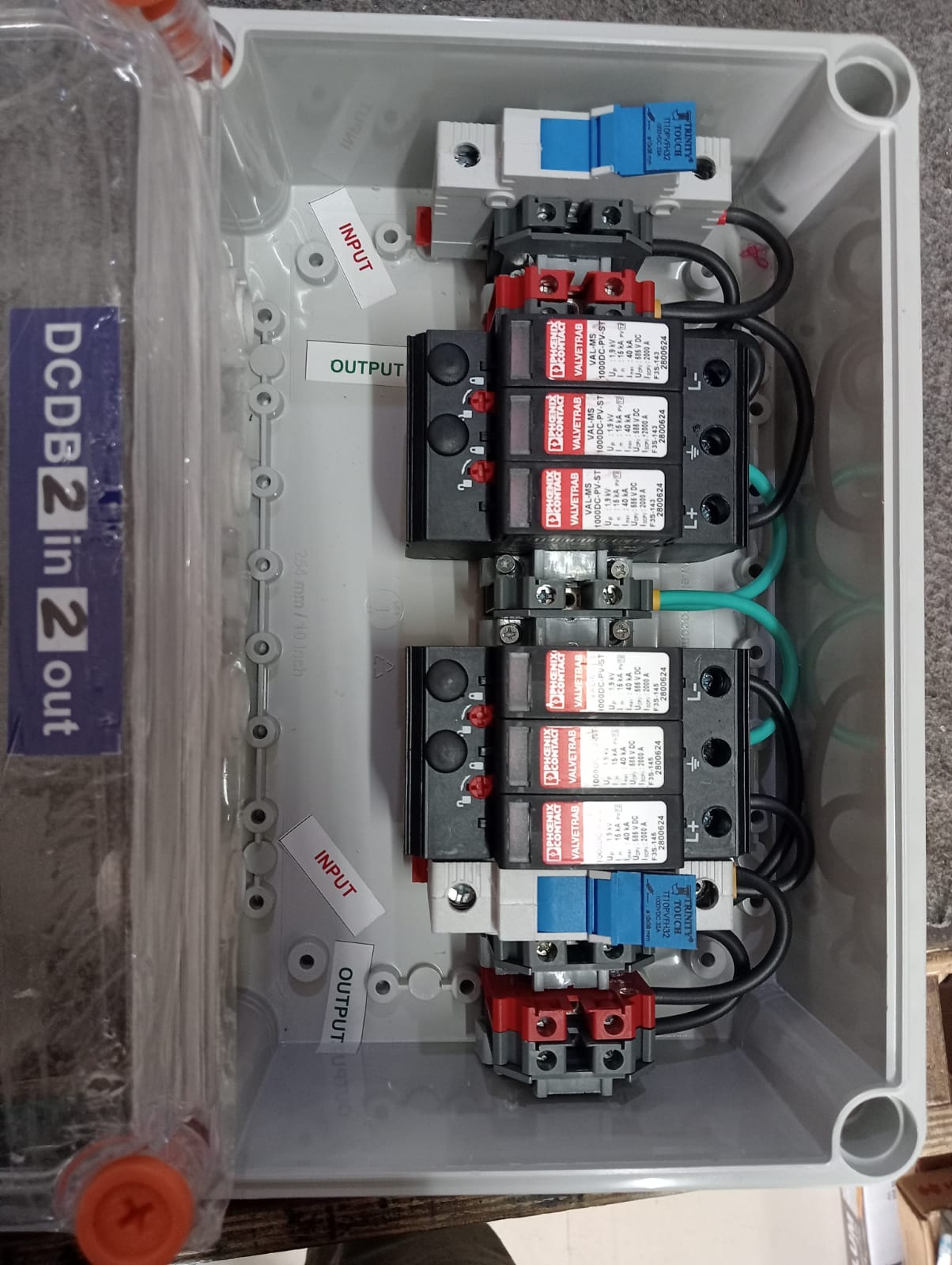

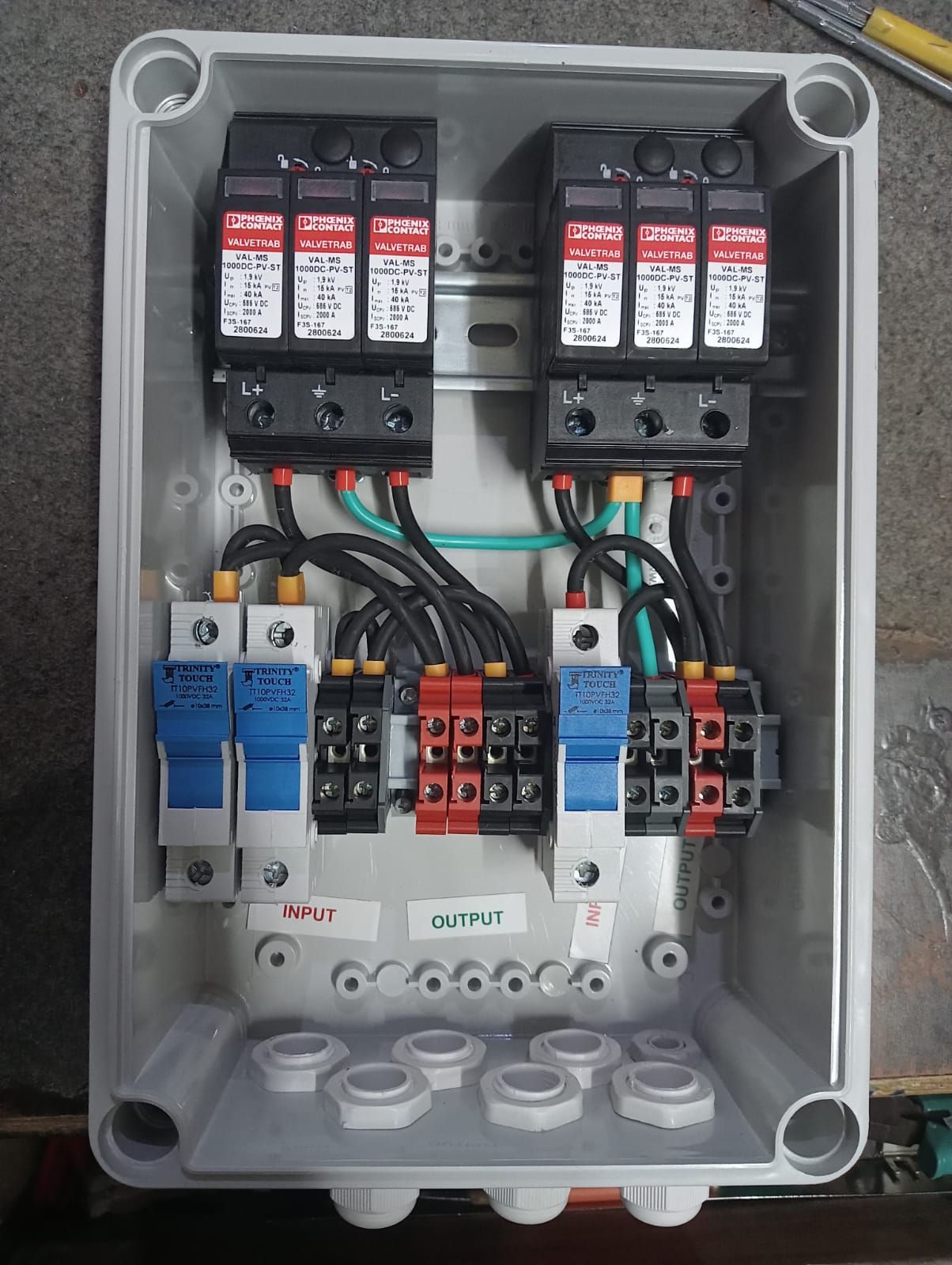

Solar Dcdb 2 In 2 Out-FUSE

Description

A Solar DCDB (Direct Current Distribution Box) 2 In 2 Out with Fuse is a key component in solar photovoltaic (PV) systems. It plays an important role in protecting the system and ensuring proper distribution of DC power from solar panels to the inverter.

Key Features of a Solar DCDB 2 In 2 Out with Fuse:

1. 2 Input and 2 Output Connections:
   • Input: The box receives DC power from two different sets of solar panels (or strings) connected in parallel or series.
   • Output: It provides the output to the inverter for conversion of DC to AC.
2. Fuses:
   • Fuses in the DCDB act as protection devices. They are used to protect the system against faults like short circuits, overloads, or any other current irregularities.
   • Each input and output typically has its own fuse to ensure that if one string of panels or a section of the system faces a fault, only the affected part is isolated, minimizing disruption to the entire system.
3. Surge Protection:
   • Many DCDBs are equipped with surge protection devices (SPDs) to protect against voltage surges, typically from lightning or other electrical anomalies.
4. Compact Design:
   • The box is designed to house multiple components, such as fuses, surge protectors, and bus bars, while maintaining a compact and organized layout to save space and simplify wiring.
5. Safety and Compliance:
   • DCDBs must meet safety standards (such as IEC standards) to ensure proper insulation, earthing, and protection against overcurrent.

Functionality:

• The fuses protect the cables and wiring of the system from being damaged by excess current. If an overcurrent situation occurs, the fuse blows, disconnecting the affected part of the circuit and preventing further damage.
• The 2-in, 2-out configuration suggests that two separate strings of solar panels can be combined and fed into the inverter in parallel, or the system may have two separate outputs for different circuits in the system.

Applications:

• Residential Solar Power Systems: For systems that have multiple panel strings or different arrays that need independent protection.
• Commercial Solar Systems: Larger systems may require multiple inputs and outputs to manage power from multiple arrays and distribute it to the inverters or the grid.

Installation & Maintenance:

• The installation of the DCDB should always follow the manufacturer’s guidelines, including proper wiring and fuse ratings.
• Regular inspection of fuses and ensuring that the box is free of debris or moisture is essential for maintaining the system’s safety and performance.

If you have a specific model or brand in mind, you may need to look at additional features, as DCDBs can vary in terms of their additional functionalities, such as monitoring or communication capabilities.
