Solar Dcdb 3 In 3 Out

Description

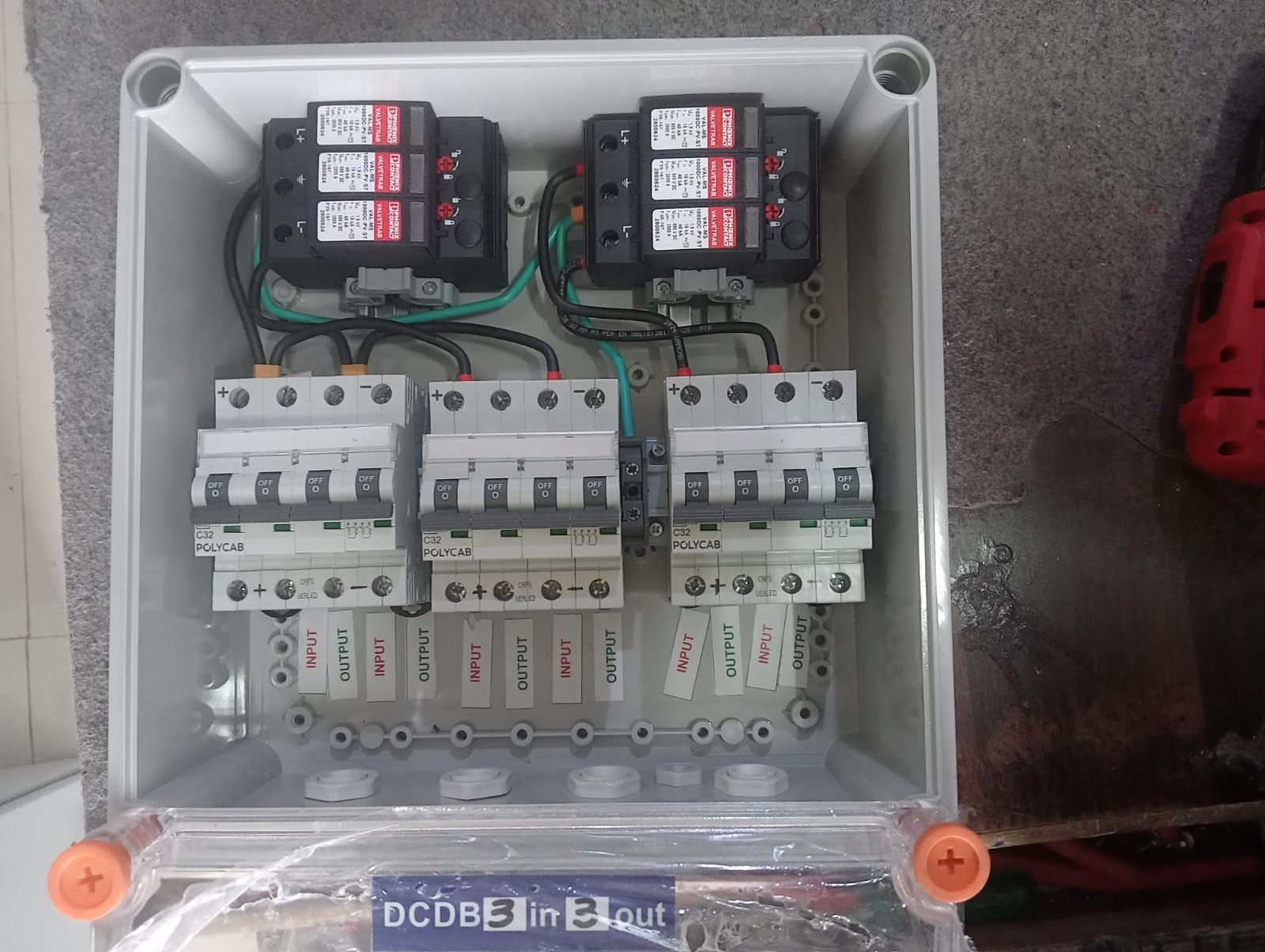

A Solar DC Distribution Board (DCDB) configured with 3 inputs and 3 outputs is designed to manage and distribute direct current (DC) electricity from multiple solar panel strings to inverters or loads. Here’s a detailed description:

Description:

1. Purpose:
   • The Solar DCDB facilitates the safe and efficient distribution of DC power generated by solar panels, optimizing the performance of solar energy systems.
2. Configuration:
   • 3 Inputs: Allows for connections from three separate strings of solar panels. This setup can improve energy capture and system redundancy.
   • 3 Outputs: Each output can connect to different inverters or loads, enabling tailored energy distribution based on system design.
3. Components:
   • Input Terminals: Designed for connecting the three solar panel strings. Each terminal typically includes protective devices.
   • Output Terminals: For connecting to three inverters or loads, ensuring efficient power transfer.
   • Circuit Protection: Includes DC circuit breakers or fuses for each input and output to protect against overloads and short circuits.
   • Surge Protection Devices (SPD): Protect the system from voltage spikes, such as those caused by lightning or other electrical disturbances.
   • Metering Equipment (optional): DC ammeters and voltmeters can be included to monitor the performance of each string and output, helping optimize system performance.
4. Construction:
   • Housed in a robust, weatherproof, or insulated enclosure to protect against environmental factors and ensure safety.
   • Designed for easy access for maintenance, monitoring, and troubleshooting.
5. Applications:
   • Commonly used in larger residential, commercial, or industrial solar power systems that utilize multiple strings of solar panels.
   • Suitable for both off-grid and grid-tied systems, providing flexibility in power management.
6. Safety Features:
   • Designed to comply with relevant electrical safety standards to minimize risks associated with DC systems.
   • Proper grounding and isolation features protect personnel and equipment from electrical hazards.

Conclusion:

A Solar DCDB with 3 inputs and 3 outputs is essential for effectively managing and distributing DC power in solar energy systems, providing enhanced flexibility, safety, and reliability. If you have any specific questions or need further details about installation or specifications, feel free to ask!
