Solar Dcdb 3 In 3 Out-FUSE

Description

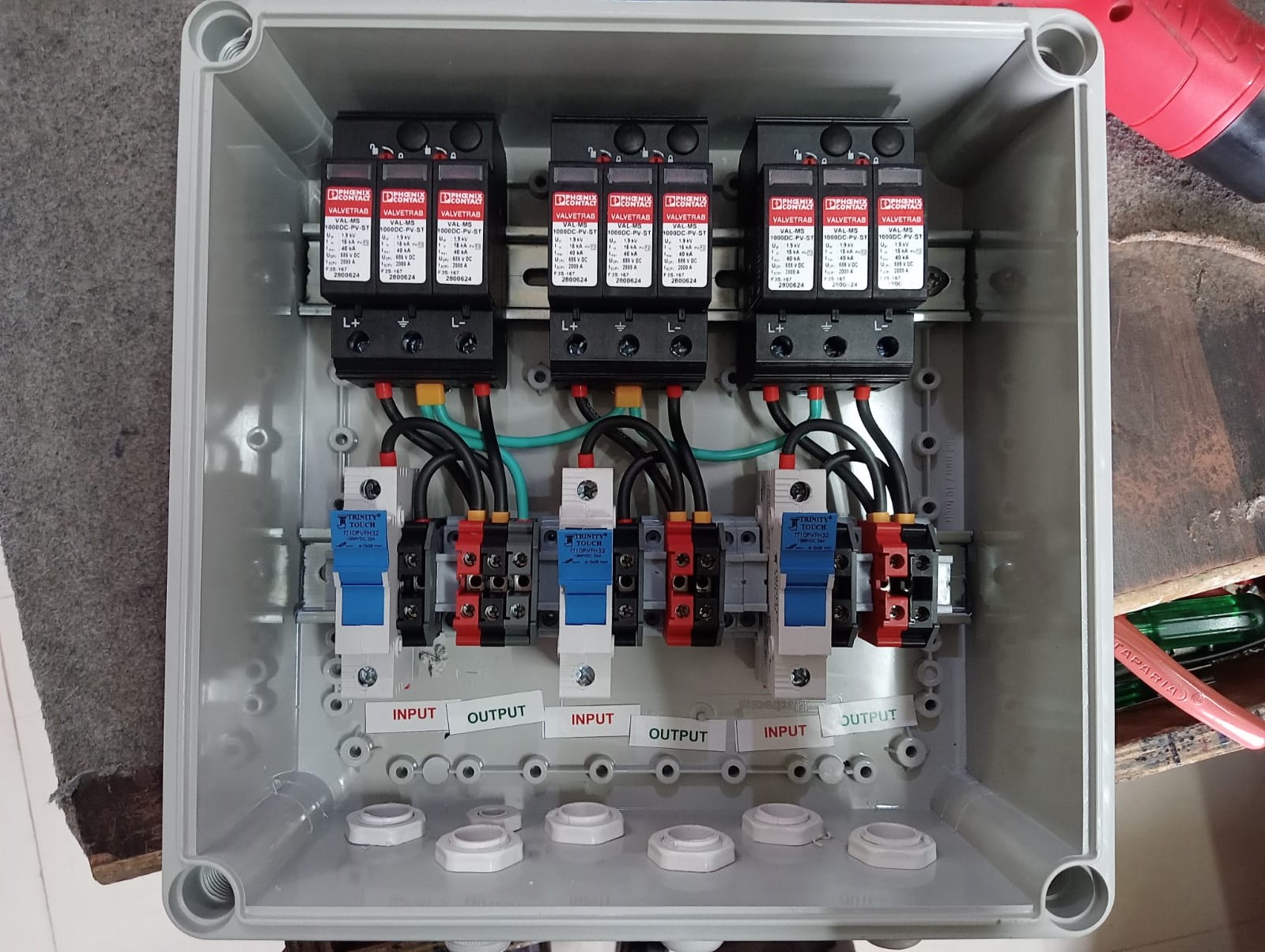

Solar DCDB (Direct Current Distribution Box) 3 In 3 Out-Fuse refers to a specific type of electrical distribution box used in solar power systems, particularly for managing the DC (direct current) side of the system. Here’s a breakdown of what the components mean:

1. DCDB (Direct Current Distribution Box):

• This is an enclosure that manages the distribution of direct current electricity from solar panels to the inverter or other electrical components in a solar power system.
• The DCDB contains protective devices, such as fuses, circuit breakers, or surge protectors, to safeguard the system from overcurrent or other electrical faults.

2. 3 In, 3 Out:

• This indicates that the DCDB has three input connections (from solar panels or strings of panels) and three output connections (to the inverter or other loads).
• The inputs typically come from the solar arrays, while the outputs are connected to the inverter or other components of the system.

3. Fuses:

• Fuses are protective devices installed in the DCDB to protect the electrical circuits from overcurrent or short circuits.
• They are essential for preventing damage to components like the solar panels, cables, or inverter. If the current exceeds the rated value, the fuse will blow, disconnecting the circuit and preventing further damage.

Key Features and Functions:

• Overcurrent Protection: Fuses or circuit breakers are installed to protect each individual input and output circuit.
• Surge Protection: Some DCDB units include surge protection devices to guard against voltage spikes, such as those caused by lightning or grid instability.
• Isolation: It can provide a means to isolate the solar arrays from the rest of the system for maintenance or troubleshooting.
• Ease of Maintenance: By having a centralized location for protection devices and connections, it makes the system easier to manage and maintain.

Common Applications:

• Residential Solar Systems: In residential setups, DCDBs are used to manage the connection between solar panels and the inverter.
• Commercial Solar Systems: In larger systems, multiple inputs and outputs allow for better management of different solar panel strings and increased safety and performance monitoring.
• Grid-Tied Systems: Used in grid-tied solar systems to protect and manage the DC circuit before the inverter converts the power to AC for the grid.

Conclusion:

The “Solar DCDB 3 In 3 Out-Fuse” essentially refers to a distribution box designed to manage and protect the DC side of a solar power system, with 3 input connections (for solar strings) and 3 output connections (for sending the power to the inverter). The inclusion of fuses provides essential protection from overcurrent or faults.
