Solar Dcdb 4 In 4 Out

Description

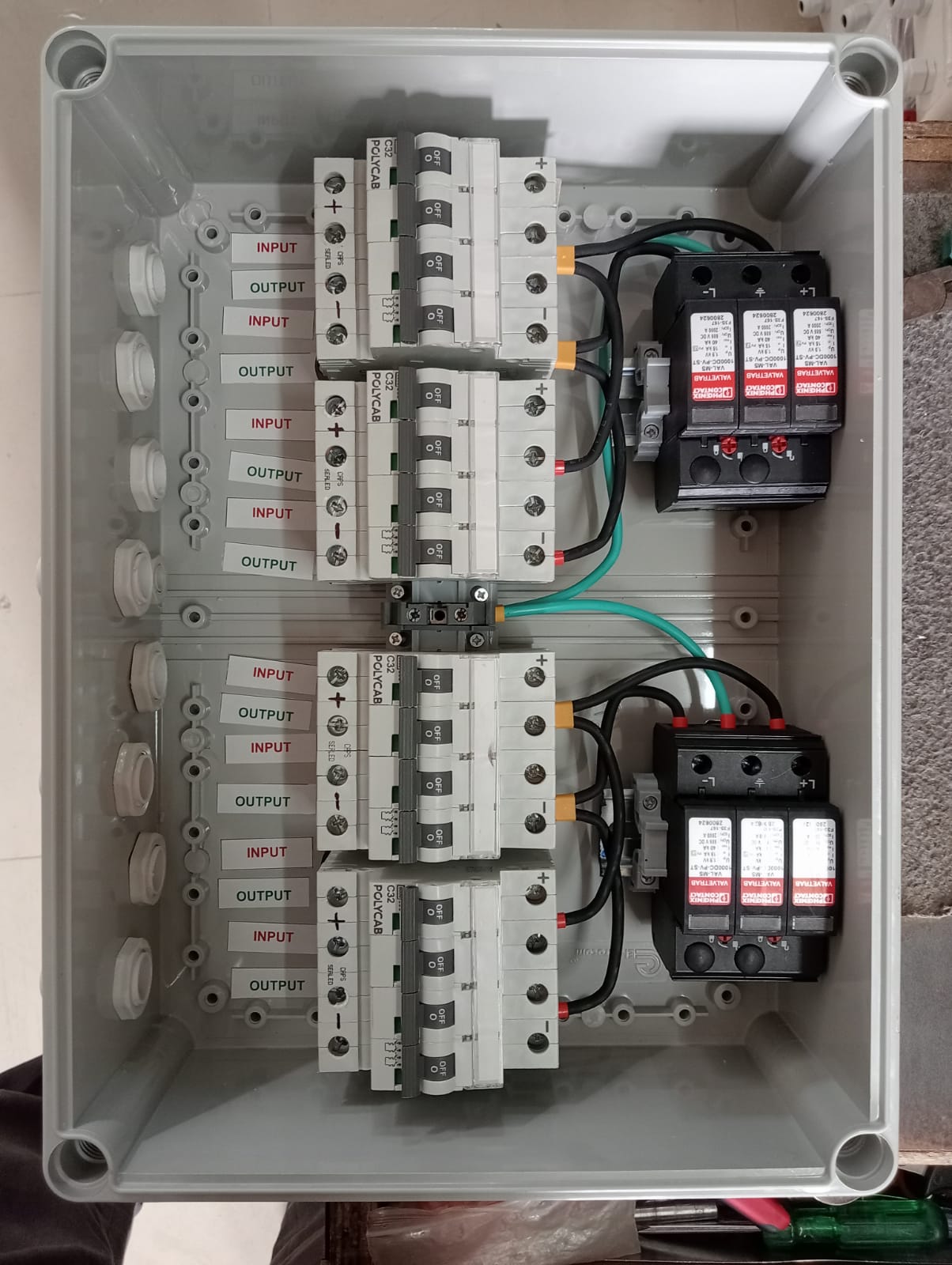

A Solar DC Distribution Board (DCDB) configured with 4 inputs and 4 outputs is designed to manage and distribute direct current (DC) electricity from multiple solar panel strings to various inverters or loads. Here’s a detailed description:

Description:

1. Purpose:
   • The Solar DCDB facilitates the safe and efficient distribution of DC power generated by solar panels, optimizing system performance and ensuring reliable operation.
2. Configuration:
   • 4 Inputs: This configuration allows for connections from four separate strings of solar panels. It enables enhanced energy capture and flexibility in system design.
   • 4 Outputs: Each output can connect to different inverters or loads, allowing for tailored energy distribution and better management of solar energy.
3. Components:
   • Input Terminals: Designed for connecting the four solar panel strings, each typically equipped with protective devices.
   • Output Terminals: For connecting to four inverters or loads, ensuring efficient power transfer to various applications.
   • Circuit Protection: Includes DC circuit breakers or fuses for each input and output to protect against overloads and short circuits, enhancing system safety.
   • Surge Protection Devices (SPD): Protect the system from voltage spikes, ensuring the safety and longevity of connected equipment.
   • Metering Equipment (optional): DC ammeters and voltmeters may be included to monitor the performance of each string and output, aiding in system optimization.
4. Construction:
   • Housed in a durable, weatherproof, or insulated enclosure to protect against environmental factors and ensure operational safety.
   • Designed for easy access for maintenance, monitoring, and troubleshooting.
5. Applications:
   • Commonly used in larger residential, commercial, or industrial solar power systems that utilize multiple strings of solar panels.
   • Suitable for both off-grid and grid-tied systems, providing flexibility in power management and distribution.
6. Safety Features:
   • Designed to comply with relevant electrical safety standards, minimizing risks associated with DC systems.
   • Proper grounding and isolation features protect personnel and equipment from electrical hazards.

Conclusion:

A Solar DCDB with 4 inputs and 4 outputs is essential for efficiently managing and distributing DC power in solar energy systems, offering enhanced flexibility, safety, and reliability. If you have specific questions or need more details about installation, specifications, or operational aspects, feel free to ask!
